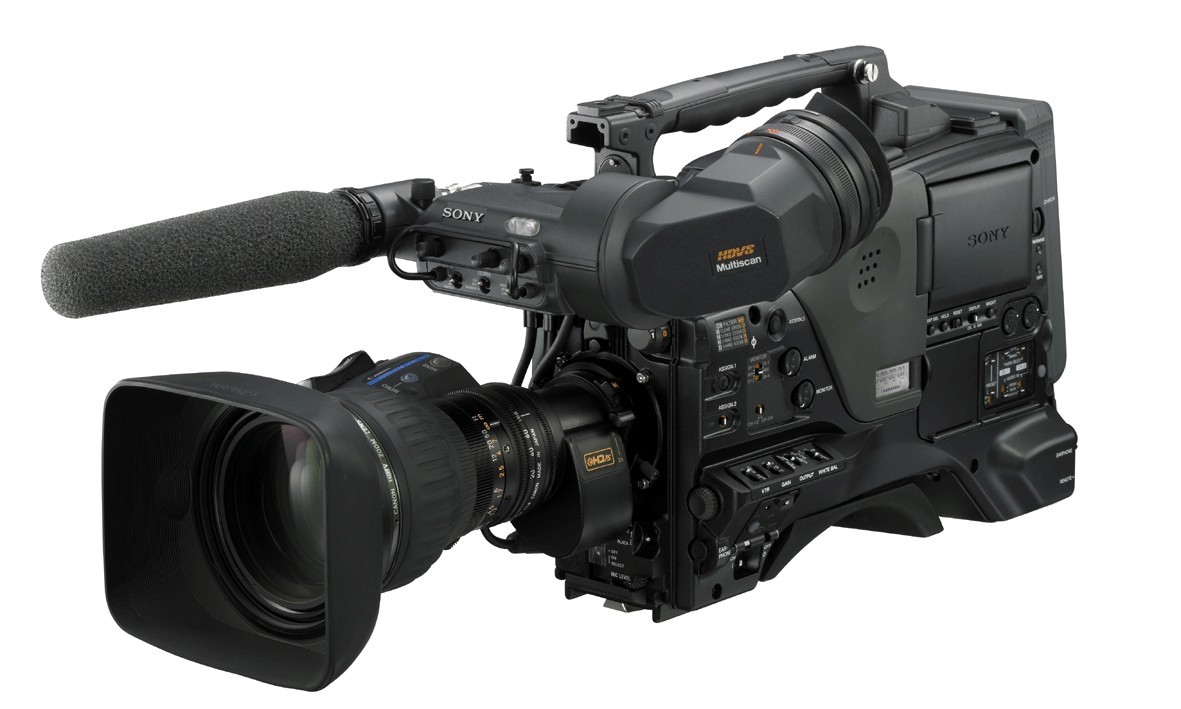

Sony HDW-650P HDCAM Professional Camcorder

HD camcorder, offering 2.2 million pixels per colour, HDCAM recording and switchable between 50i, 59.94i and 25P scanning.

HDCAM has become the format of choice around the world for high quality HD programming across a wide range of production genres. Since launch over 43,000 HDCAM camcorders and VTRs have been purchased, and year-by-year Sony has continued to strengthen the line-up to offer new creative opportunities to the user.

The HDW-650P incorporates the latest developments in acquisition technology to capture breathtaking HD images. It can record pictures in 1080/50i and 59.94i interlace mode, as well as in 1080/25P where a natural 'film look' is required.

The camcorder features three newly developed 2/3-inch type Power HAD FX CCDs, a 14-bit A/D converter, and a state-of-the-art DSP LSI signal processing. This provides extremely wide tonal reproduction, as well as a high sensitivity of F12 at 50 Hz. A signal-to-noise ratio of up to 59dB is realised using a newly developed noise-suppression function.

The HDW-650P is equipped with many useful features as standard - including a 3.5-inch colour LCD screen located on the inside panel - all packaged into a well-balanced, reliable chassis.

Other benefits include two HD-SDI outputs, a down-converted SD output, selectable gamma characteristics (HyperGamma), interval recording, picture cache recording, and a slow shutter function - all provided as standard. Addition of an optional colour or monochrome viewfinder and an optional ECM series microphone completes the feature set.

MIN. ILLUMINATION 0.26 lx (F1.4 lens, +42 dB turbo gain)
WEIGHT 4.2 kg (9 lb 4 oz) (without options)
SENSITIVITY F11 (system frequency: 59.94i), F12 (system frequency: 50i) (typical)
OPTICAL SYSTEM F1.4 prism (Equipped with Quarz Filter)
HUMIDITY 25 to 85% (relative humidity)
STORAGE TEMPERATURE -20 to +60
OPERATING TEMPERATURE 0 to 40
OPERATING TIME Approx. 120 min. with BP-GL95 battery
LENS FIT & MOUNT 2/3-inch 48 bayonet mount
GENLOCK / TIMECODE Yes
POWER CONSUMPTION 35 W (with 12 V DC supply, when recording, LCD monitor off)
POWER REQUIREMENT 12 V DC +5.0/-1.0 V
BATTERY SYSTEM BP-GL Series / BP-L Series
HD-SDI OUTPUT Yes (x2)
SIGNAL-TO-NOISE RATIO 54 dB (Noise suppressor off. 59 dB when noise suppressor is on.)
PIXEL RESOLUTION 1920 (H) x 1080 (V) 1000 TV Lines
SENSOR TYPE 3-chip 2/3-inch type IT CCD
INDUSTRY SEGMENT HDCAM
CAMCORDER TYPE Shoulder
RECORDING FORMAT(S) HDCAM
RECORDING FRAME RATE HDCAM 59.94i/50i/25PsF
  •   Standard Manufacturer's Warranty
    • CD-ROM manual (1)
    • Operation manuals, English version (1)
    • Shoulder strap (1)
