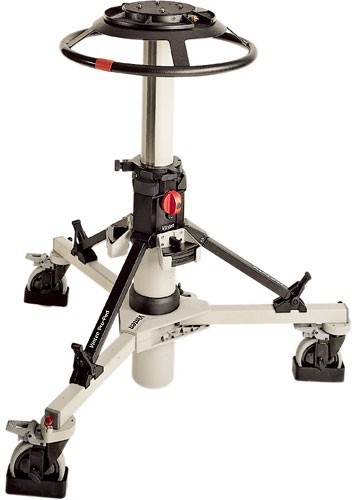

Vinten (3983-3C) Pro-Ped Pedestal (Studio)
Perfect Balance and on-shot movement. Pedestal (Studio). (Mfr # 3983-3C)
The Pro-Ped lightweight pedestal can be used for both studio and OB applications. Designed to be stable and robust, the lower stage of the two-stage system is balance assisted to give simple levation whilst the upper stage provides Perfect Balance and on-shot movement. A built in pump makes counterbalance simple.
For studio use the dolly base is supplied with 12.5 cm / 5" wheels with track locks and cable guards. The OB version has 15 cm / 6" wheels, providing greater ground clearance.
• Lightweight two-stage pedestals
• Built in pump for easy counterbalance
• Easy to transport
| TRANSIT WIDTH | 86 cm / 33.8" |
|---|---|
| WEIGHT | 28.5 kg / 62.8 lbs |
| PAYLOAD | 55 kg / 121 lbs (max. capacity includes trim weights) |
| HEIGHT | 66.6 to 148.5 cm / 26.2 to 58.4" |
| GROUND CLEARANCE | 1.9 cm / 0.75" |
| STEERING RING DIAMETER | 53.4 cm / 20.8" |
| TRACKING WIDTH | 95 cm / 37.4" |
| WHEEL LOCK | Yes |
| TRIM WEIGHTS | 3.5 kg / 7.5 lbs |
| WHEEL DIAMETER | 12.5 cm / 5" |
| ON-SHOT STROKE | 41 cm / 16.1" |
