Blackmagic Design Micro Cinema Camera

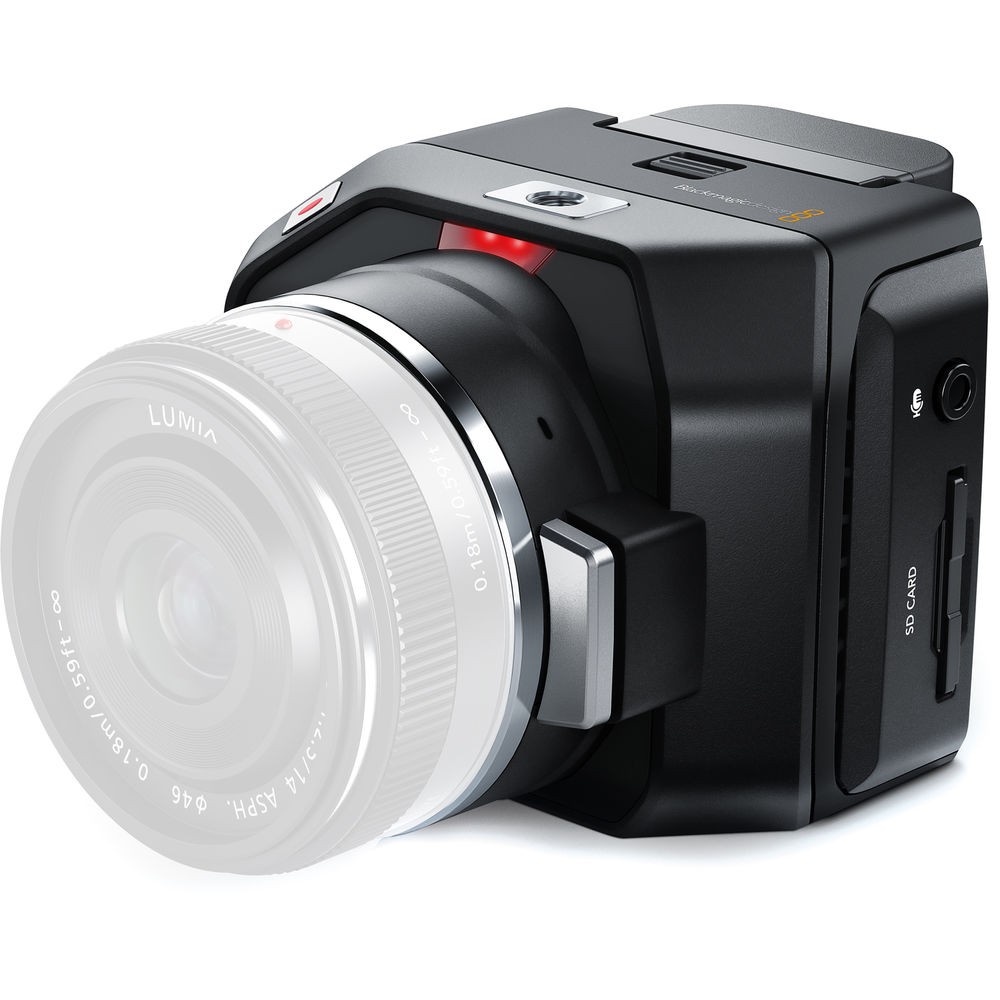

The Blackmagic Design Micro Cinema Camera is a incredebly small digital film camera with a Super 16mm-sized sensor designed to be operated remotely and capture footage from virtually anywhere. It features the same image sensor found in Blackmagic's Pocket Cinema Camera, which supports 1080p video and 13 stops of dynamic range but adds a global shutter that supports frame rates up to 30 fps. Frame rates up to 60 fps are possible using a rolling shutter. The camera is equipped with an active MFT mount that can accept native MFT lens or be adapted to a wide range of other modern and vintage lenses using optional third party adapters. Video is recorded to SDHC/SDXC memory cards using the 12-bit CinemaDNG RAW format or 10-bit Apple ProRes family of codecs.

Key Features:

Compact Size

With a compact miniature design of the Blackmagic Micro Cinema Camera combines advanced miniaturization and a unique expansion port in a digital film camera that lets you create personalized rigs for remote operation and monitoring.

Super 16mm Sensor with 13 Stops of Dynamic Range

The Super 16mm-sized sensor delivers 1080p video with a film-like look with a wide dynamic range of 13 stops.

Global and Rolling Shutter

The Super 16mm-sized sensor supports 1080p resolution and has 13 stops of dynamic range and global shutter for up to 30 frames per second (60 fps when using a rolling shutter). Most DSLR and action cameras use a rolling shutter that exposes different parts of the image in fractions of a second, causing video to appear skewed or wobbly when the camera moves or vibrates.

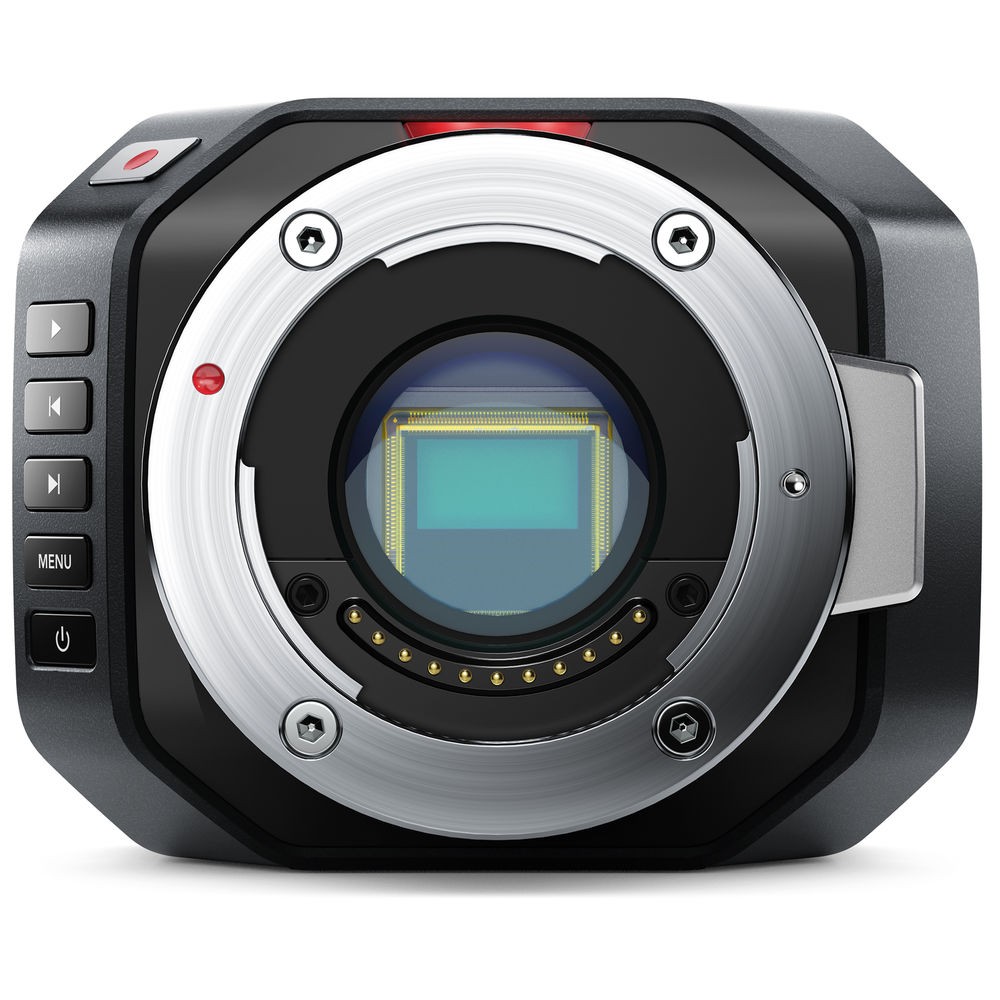

Active Micro Four Thirds Lens Mount

The Blackmagic Micro Cinema Camera features an active Micro Four Thirds lens mount let lets you take advantage of the wide-range of native prime and zoom MFT lenses available.

RAW and ProRes Recording

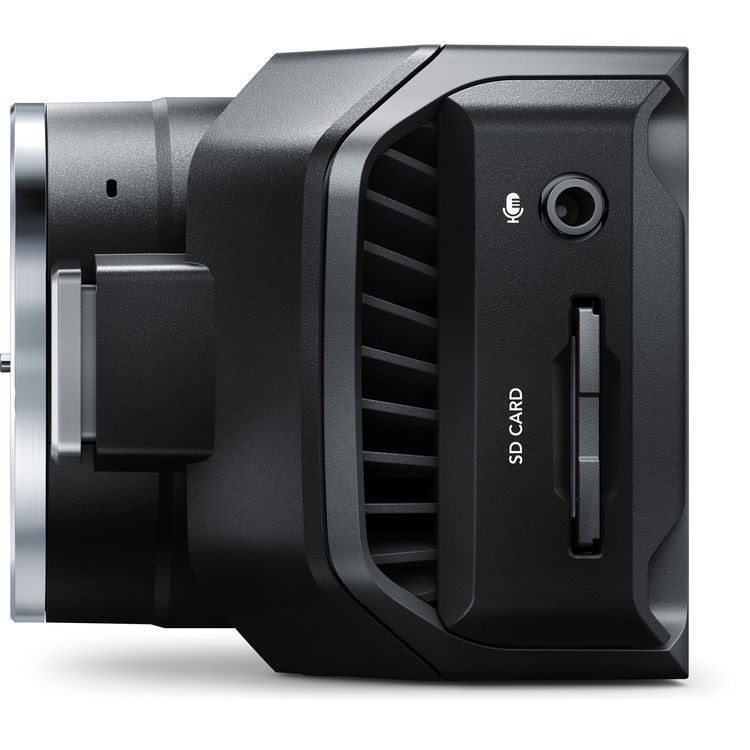

The camera records to SDHC/SDXC memory cards in either in either CinemaDNG RAW or ProRes. Cinema DNG RAW files are 12-bit log and give you all of the data from the camera's sensor, so you have the latitude to change things like white balance and exposure long after the camera stops rolling.

Expansion Port and Remote Control

The DB-HD15 expansion port lets you create custom remote control, external power, and monitoring solutions. The included breakout cable gives you access to many of the camera's unique functions.

Remote Monitoring

The expansion port includes NTSC and PAL composite video output that can be connected to cost-effective wireless video transmitters for remote monitoring.
