Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design CONVMASA Overview

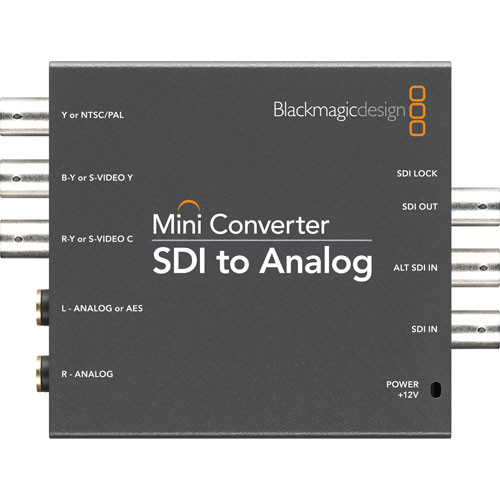

The Mini Converter SDI to Analog from Blackmagic will accept an SDI input signal and convert it to HD/SD component, NTSC, PAL, or S-video output. Also, if your SDI signal has audio embedded, the Converter will let you first de-embed the audio so that you can output it via the analog outs.
SDI to Analog Conversion
Use this device to convert SDI video signals to analog output.
Embedded Audio
The Converter can de-embed audio from an SDI signal so that you can output it via the analog outs.
Blackmagic Design CONVMASA Specs
| Input | (1) SDI (switchable between SD, HD & 3Gbs SDI) |
| Output | (1) component, NTSC, PAL, and S-video (1) SDI (switchable between SD, HD & 3Gbs SDI) |
| Audio | Analog: (2) channels of professional balanced analog with standard 1/4" jack connections Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard |
| Power | 12VDC |
| Dimensions (HxWxD) | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
