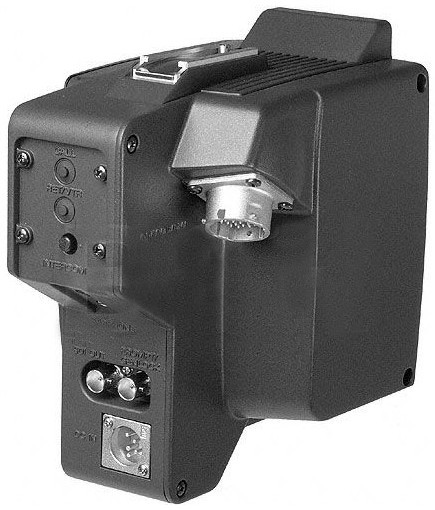

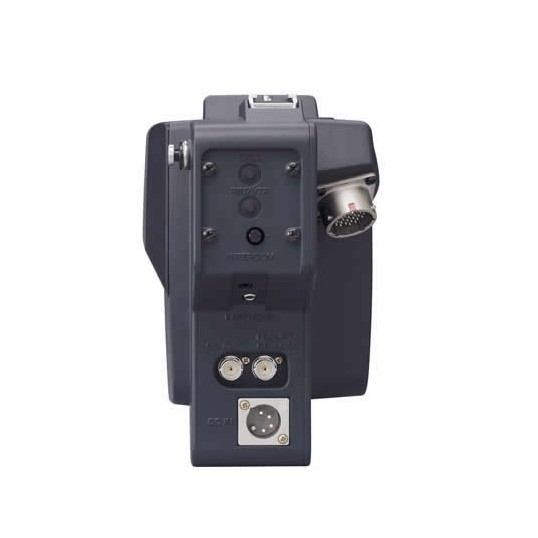

Sony CA-D50//U
Camera Adaptor
Camera Adaptor for use with the CCU-D50/D50P Camera Control Unit. Dockable to Sony DXC cameras that employ the 76-pin digital connector Interfaces with 26-pin equipped Sony portable VTRs.
| INPUTS | XLR 4-pin (1), 10.5 to 17.0 V |
|---|---|
| WEIGHT | 1.1 kg (2 lb 7 oz) |
| DIMENSIONS (WXHXD) | 113 (W) 3 183 (H) 3 168 (D) mm (7 1/4 3 4 1/2 3 6 5/8 inches) |
| STORAGE TEMPERATURE | -20 |
| OPERATING TEMPERATURE | -10 |
| GENLOCK / TIMECODE | BNC (1), 1.0 Vp-p, 75 ? |
| POWER CONSUMPTION | Approx. 3.8 W |
| POWER REQUIREMENT | DC 12 V |
| HD-SDI OUTPUT | BNC (1), 270 Mb/s, 0.8 Vp-p, 75 ? |
