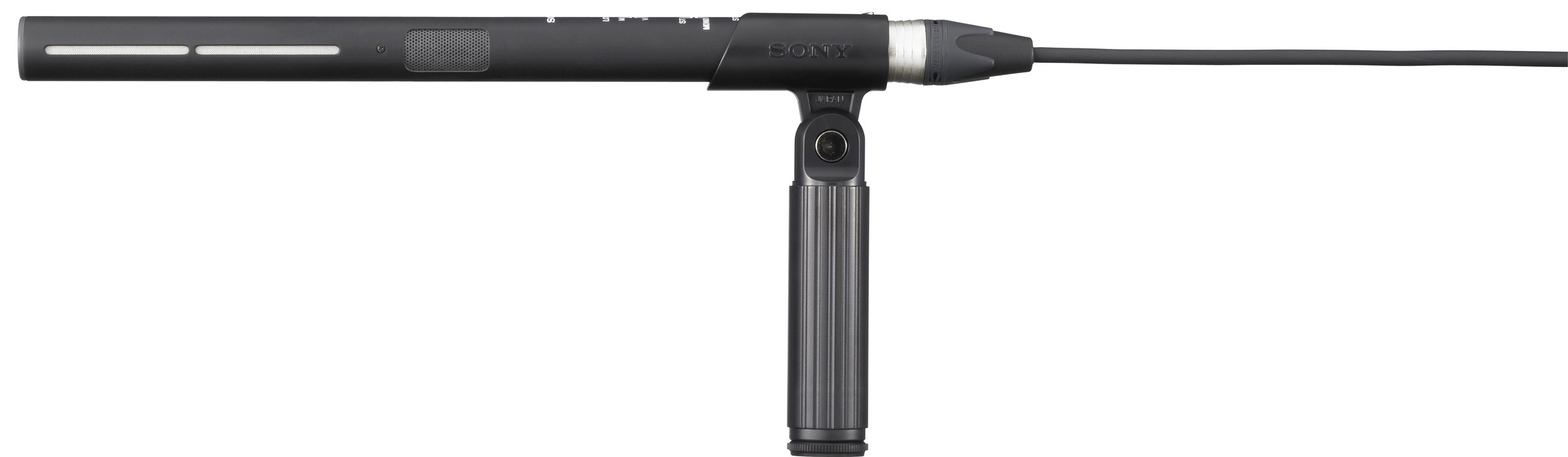

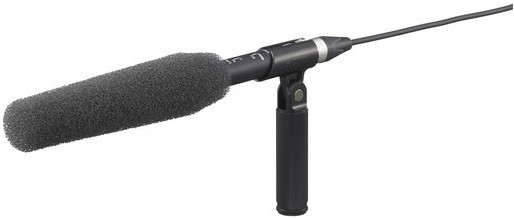

The Sony ECM-680S is an MS stereo* shotgun, electret condenser-type microphone, ideal for a broad range of field production and broadcast studio applications. Incorporating newly developed microphone capsules, the ECM-680S offers excellent sensitivity, low inherent noise, and a flat-and wide frequency response. The most distinguished feature of the ECM-680S is its switchable operation between a highly directional monaural mode and stereo mode.
Monaural mode provides highly directional sound pickup, while stereo mode delivers natural and spatial sound. The ECM-680S is compact and lightweight, making it well-suited to use with a range of Sony professional camcorders. In addition, it can be mounted on a boom pole for more versatility. With its excellent quality and versatility, the ECM-680S is an ideal choice for quality-conscious sound gathering applications.
* MS microphone signal of th e ECM- 680S is internally decoded to L and R (stereo) outputs
Benefits:
• Superior Sound Quality
- The ECM-680S uses the Mid-Side (MS) technique that offers natural stereo sound and excellent localization. Equipped with newly developed large diaphragm microphone capsules with bidirectional characteristics, the ECM-680S delivers a superb sensitivity of -28 dB* (stereo)/-32 dB* (monaural), and extremely low inherent noise of less than 20 dB SPL (stereo/monaural).
* 0 dB=1 V/Pa
WEIGHT | Approx. 140 g (4.9 oz) |
---|---|
DIRECTIVITY | Uni-directional |
OUTPUT IMPEDANCE | 100 ohms |
FREQUENCY RESPONSE | Stereo: 50 Hz to 20 kHz, Monaural: 40 Hz to 20 kHz |
SENSITIVITY | Stereo: -28 dB(*1) |
DYNAMIC RANGE | Stereo: 104 dB or more, Monaural: 106 dB or more |
SOUND PRESSURE LEVEL | 124 dB SPL(*2) max |
DIMENSIONS | 20 mm diameter x 250 mm long |
CAPSULE TYPE | Electret condenser |
POWER CONSUMPTION | Stereo: 4 mA or less x 2ch, Monaural: 4 mA or less |
POWER REQUIREMENT | DC 40 to 52 V |
SIGNAL-TO-NOISE RATIO | Stereo: 74 dB or more, Monaural: 76 dB or more |
