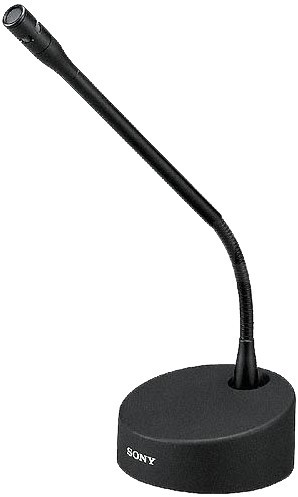

Electret Condenser Table-top Microphone
The ECM-530 is a compact, high quality table-top microphone for precise voice pick-up.
• Electret condenser capsule
• Extendable / flexible gooseneck
• Two-way powering (internal battery / 12-48 V phantom supply operation)
CORD / CABLE LENGTH | 2m |
---|---|
CONNECTORS | XLR-3-12C type |
WEIGHT | 325 g (11.5 oz) |
DIRECTIVITY | Uni-directional |
OUTPUT IMPEDANCE | 150? |
FREQUENCY RESPONSE | 70 Hz to 18 kHz |
SENSITIVITY | -49.0 dB |
BATTERY | R6P (R6P battery life: approx. 5,000 h) |
DYNAMIC RANGE | 95 dB or more |
SOUND PRESSURE LEVEL | 126 dB SPL max |
DIMENSIONS | 12 dia. x 326 to 448 mm 86 dia. mm (Table Stand) (1/2 dia. x 12 7/8 to 17 3/8 inches) (Table stand: 3 1/2 dia. inches) |
POWER SUPPLY | Battery power (R6 or LR6) or external power supply (AC-148F or equivalent) |
CAPSULE TYPE | Electret condenser |
SIGNAL-TO-NOISE RATIO | 63 dB or more |
• Standard Manufacturer's Warranty
• Wind screen
• Operation manual
