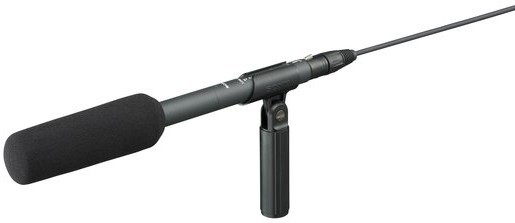

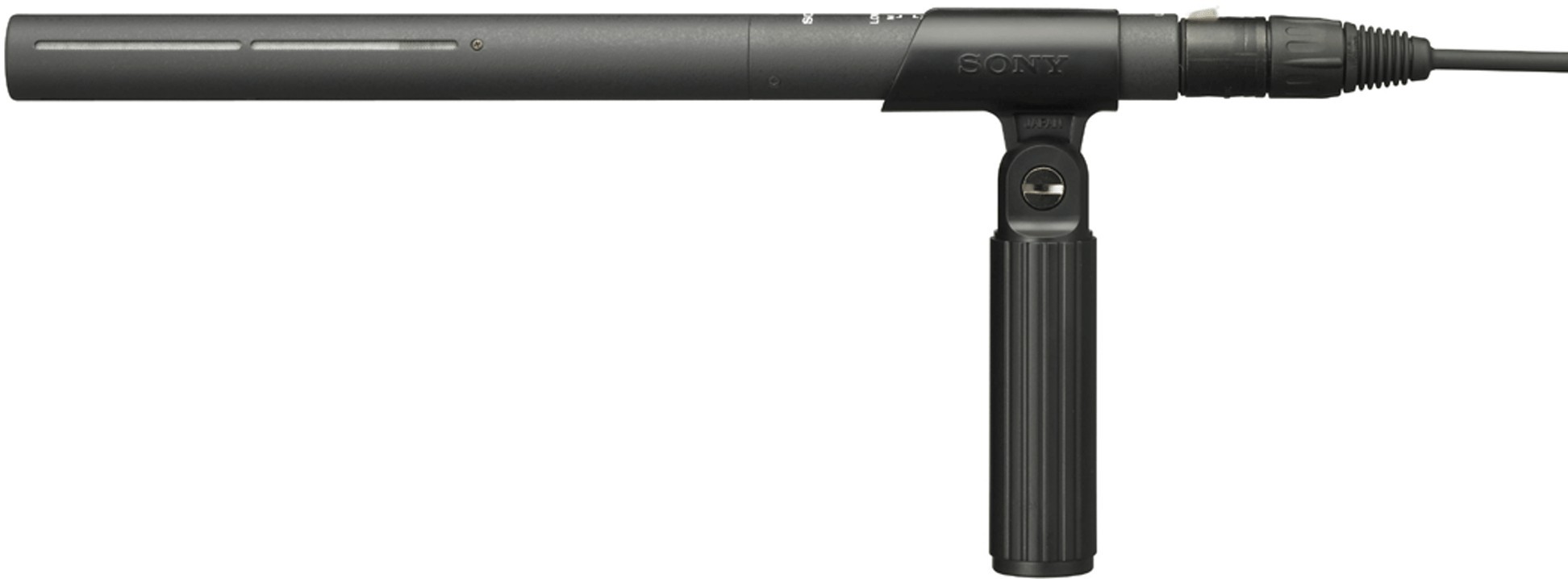

The ECM-674 is an affordable shotgun-type electret condenser microphone, which delivers excellent sound performance in field and studio productions.
Features:
• Flat-and-wide Frequency Response
- The ECM-674 microphone has a flat-and-wide frequency response (40 Hz to 20 kHz) and provides sound reproduction that is extremely smooth and natural
• Compact and Lightweight Design
- The ECM-674 has been designed as a highly directional compact and lightweight shotgun microphone. It measures only 268 mm (10 5/8 inches) in length and weighs just 185 g (6.5 oz), maintaining good balance even when mounted on compact camcorders.
• Built-in Low Cut Filter
- The built-in two-position (M, V) low-cut switch provides users with a simple method of reducing the effects of undesired ambient noise.
Benefits:
• Superb Sound Quality
- The ECM-674 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa.) and low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pick-up even in noisy environments
• Two-way Powering
- A two-way powering capability allows the ECM-674 to be driven by microphone power or batteries, making it suitable for both camcorder mounting and many other sound-gathering applications. Internal: AA-size battery operation. External: DC (40 to 52 V) operation
• Built-in Battery Liquid Leakage Protection Circuit
- In general, old batteries can leak and damage the equipment they are used in. The ECM-674 prevents this by continually detecting the output voltage of the battery and shutting off the power supplied to the electric circuit whenever the voltage drops beneath a certain threshold.
Note: (*1) 0 dB=1 V/Pa., at 1 kHz (*2) 0 dB=20µ Pa.
WEIGHT | Approx. 208 g (7.3 oz) with battery |
---|---|
DIRECTIVITY | Uni-directional (super-cardioid) |
OUTPUT IMPEDANCE | 220 ? |
FREQUENCY RESPONSE | 40 Hz to 20 kHz |
SENSITIVITY | -36 dB(*1) |
DYNAMIC RANGE | Phantom: 107 dB or more, Battery: 98 dB or more |
SOUND PRESSURE LEVEL | Phantom: 124 dB SPL (*2), Battery: 115 dB SPL (*2) max |
DIMENSIONS | 20 dia. x 268 mm (13/16 dia. x 10 5/8 inches) |
CAPSULE TYPE | Electret condenser |
POWER REQUIREMENT | External: DC 40 to 52 V, Battery: 1.5 V |
SIGNAL-TO-NOISE RATIO | 77 dB or more (IEC179 A-weighted, 1 kHz, 1Pa.) |
