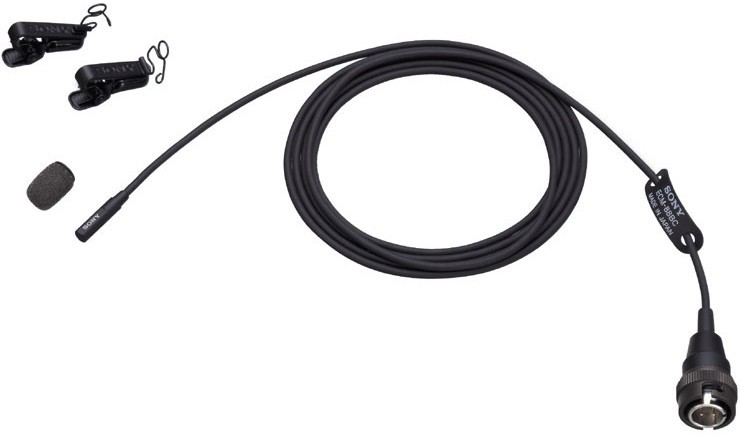

The ECM-88BC is a miniature omni-directional electret-condenser microphone ideally suited for quality-critical applications in broadcasting, theater and field production. This lavalier mic achieves high-sensitivity and has a flat-and-wide frequency response. The ECM-88BC offers extremely low handling noise with unparalleled high sound quality. The ECM-88BC has a Sony 4-pin connector with the cable length optimized (3.9 feet) for use with Sony WRT-822B and WRT-8B wireless bodypack transmitters.
• Omni-directional dual-diaphragm lavallier condenser microphone with Sony 4-pin SMC9-4P connector
• Low handling noise - Moving around while wearing a lavalier mic can often cause lav mic cables to rub against a users clothing. In many existing lavalier mic designs, this (frequently unavoidable) body movement can cause loud undesirable handling noise. The ECM-88BC radically reduces this handling noise making it ideal for use in applications where users are moving.
• Flat-and-wide frequency response - Many lavalier microphones are specifically optimized for speech reproduction and have limited use in other applications. The ECM-88BC extends it's frequency response beyond the range of speech reproduction, and can be used for many high quality sound applications requiring a miniature mic that can easily be concealed.
CORD / CABLE LENGTH | 3.9 feet |
---|---|
CONNECTORS | BC type. Supplied with Sony 4-pin (SMC9-4P) connector |
WEIGHT | 0.7 oz |
DIRECTIVITY | Omni-directional |
FREQUENCY RESPONSE | 20 Hz to 20 kHz |
SENSITIVITY | -39.0 dB (11.2mV) |
DYNAMIC RANGE | 99 dB or more |
SOUND PRESSURE LEVEL | 125 dB SPL |
DIMENSIONS | 5/32 diameter X 11/16 inch (Microphone Head) |
CAPSULE TYPE | Electret Condenser |
POWER REQUIREMENT | DC 1.1 to 10.0 V |
SIGNAL-TO-NOISE RATIO | 68 dB or more |
• Standard Manufacturer's Warranty
• S.H. tie clip (x 1)
• S.V. tie clip (x 1)
• D.H. tie clip (x 1)
• U. windscreen (x 1)
• Operating instructions (x 1)
• Microphone case (x1)
• Ferrite clamp (x1)
