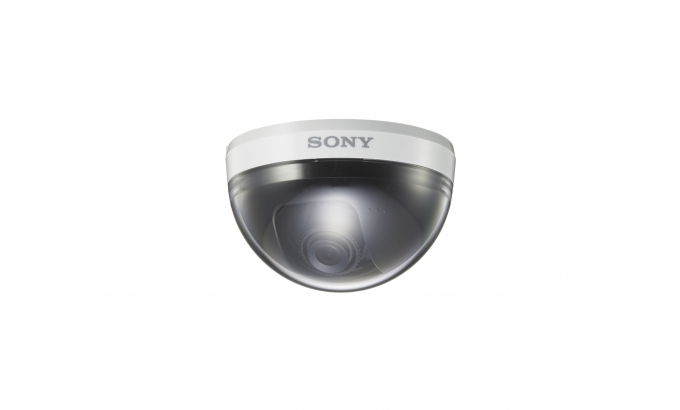

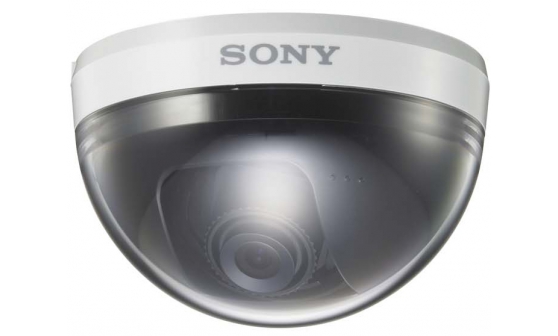

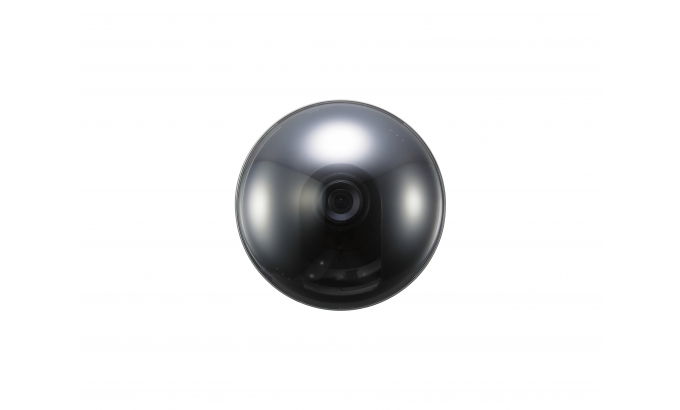

SSC-N11

Compact high resolution analogue indoor minidome security camera

SONY



The SSC-N11 is a high resolution analogue minidome security camera with a 1/3" Super HAD CCD II sensor, electronic Day/Night function, ATR-Lite, iBLC and a fixed focal length of 3mm.

With a horizontal resolution of 540 TV lines and high sensitivity, this cleverly designed compact camera is ideal for a wide range of applications – achieving optimum surveillance even in difficult lighting conditions.

Technical Specifications

Please be aware that the features/specifications can differ from country to country

Camera

Image Sensor 1/3-type 760H Super HAD CCD II
Number of Effective Pixels Approx. 0.44 Megapixels
Signal System PAL
Sync System Internal Only
Minimum Illumination (50 IRE) Color: 0.55 lx (F2.0 AGC ON)
B/W: 0.30 lx (F2.0 AGC ON)
Minimum Illumination (30 IRE) Color: 0.35 lx (F2.0 AGC ON)
B/W: 0.20 lx (F2.0 AGC ON)
S/N Ratio (Gain 0 dB) More than 55 dB (AGC OFF)
Gain Auto (ON/OFF)
Shutter Speed Auto
White Balance ATW (2000 K to 10000 K)
Lens Monofocal type
Powered Zoom No
Powered Focus No
Horizontal Viewing Angle 95.9°
Focal Length f = 3.0 mm
F-Number F2.0
Minimum Object Distance 400 mm
Pan/Tilt/Rotation Angle (Manual) 340°/±45.3°
340°
IR Illuminator No

Camera Features

Day/Night Electronic D/N
Tone Correction ATR-Lite: ON/OFF, iBLC: ON/OFF
Noise Reduction 2DNR: ON/OFF
Vandal Resistant No
Ingress Protection No

Interface

Analog Video Output VBS: 1.0 Vp-p
540 TV lines

General

Power Requirements DC 12 V ±10%
Power Consumption 0.9 W max.
Operating Temperature -10? to +50?
+14°F to +122°F
Storage Temperature -40? to +60?
-40°F to +140°F
Operating Humidity 20% to 80%
Storage Humidity 20% to 95%
Dimensions (W x H x D) *1 φ84 x 53 mm
φ3 3/8 x 2 1/8 inches
Mass 125 g
4.4 oz
Safety Regulations EN55022(Class A)+EN50130-4
EN55022(Class A)+EN55024
AS/NZS CISPR22 Class A
IEC60065
GOST-R IEC60065 compliance
Supplied Accessories Operating Instructions (1)

Notes

*1 W x H x D or "Diameter x H". The values for dimensions are approximate.

  • Compact and stylish design

    A compact, stylish and discreet design that compliments any surveillance environment.

  • Super high resolution

    With a horizontal resolution of 540 TV lines, the SSC-N11 produces detailed, sharp images.

  • Electronic Day/Night function

    This ensures the camera is operating with the optimum sensitivity for both day and night conditions.

  • ATR-Lite

    ATR-Lite (Adaptive Tone Reproduction) improves the ability to resolve detail where both high and low luminance areas exist in the same picture.

  • iBLC

    iBLC (intelligent backlight compensation function) can identify and compensate for areas in the image that are affected by strong light coming from a region in front of the camera e.g. a window. It will adjust exposure to retrieve detail in areas that would otherwise have been under-exposed.

  • ATW

    ATW is Sony's white balance system. It automatically adjusts the image to give an overall neutral colour balance.

  • Easy viewing angle adjustment

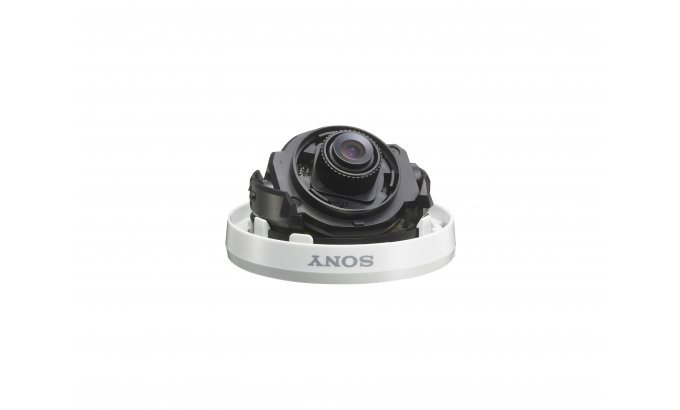

    Inside the protective dome, the camera has a three-way hinge that allows horizontal, vertical and swivel rotation. This provides a very high degree of flexibility, and allows the camera to be installed on vertical as well as horizontal surfaces.
