SONY LKRI-001
Analogue Input Board

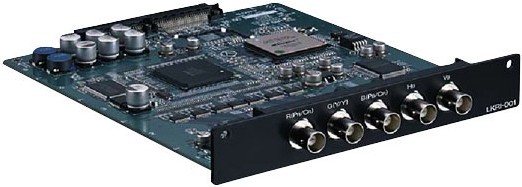

The LKRI-001 Analog Input Board utilizes 5 BNC connectors that can accept 0.7 volt analog signal levels.
• Computer signals - RGB: 0.7 Vp-p ±2 dB positive, 75 Ω
• Standard definition video [YCbCr] - Y: 1.0 Vp-p ±2 dB sync negative, 75 Ω
• Standard definition video [YCbCr] - 0.7 Vp-p ±2 dB positive, 75 Ω
• High definition video [RGB] - 0.7 Vp-p ±2 dB positive, 75 Ω
• High definition video [YPbPr] - ±0.35 Vp-p ±2 dB, positive 75 Ω
• Sync - HD horizontal: TTL level, high impedance, sync positive/negative
--
