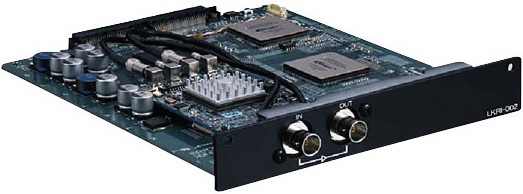

SONY LKRI-002
HD-SDI Input Card for SXRD 4K projector
The LKRI-002 HD SDI (4:2:2) Input Board can accept SMPTE 259M SD digital 525 or 625 line video. It can auto switch to SMPTE 292M 1080 4:2:2 YUV serial picture data.
• HD-SDI (4:2:2)
• Input Board - SMPTE 259M SD digital 525 or 625 line video
• Supported signals - HD-SDI (SMPTE-292M / ITU-R.BT709 / BTA-S004)
• Supported signals - SD-SDI (SMPTE-259M / ITU-R.BT601)
• Connector - BNC x 2 (Input x 1, Loop-through out x 1)
--
