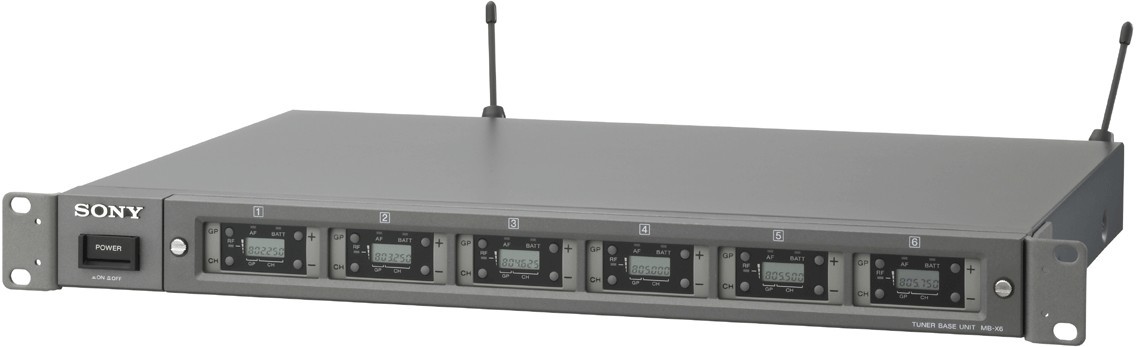

Sony MB-X6
Tuner Base Unit. (Mfr # MB-X6)
• Accommodates up to six tuner modules included in the UWP-X1/X2 package, for up to six channels of simultaneous operation
• Addition of the WD-850A or WD-880A allows multi-channel operation with even more channels
• Easy mechanism for attaching and detaching tuner modules
• RF input attenuator switch (10 dB/0 dB)
• Balanced XLR output connector for each tuner and mix output
• Selectable output level: -58 dBu (for MIC) or -20 dBu (for LINE) at ±5 kHz deviation at 1 kHz modulation
• Auto channel search function automatically selects unoccupied channels
• Supplied with passive antennas
• Modular, 1U high, 19-inch rack unit
| NO. OF CHANNELS | (Receiving) 6 channels when accommodating 6 tuner modules included in the UWP-X1/X2 package |
|---|---|
| CONNECTORS | (Antenna) BNC-R type (x2), 50 |
| AUDIO LEVEL | -20 dBu (LINE level) or -58 dBu (MIC level) |
| WEIGHT | 5.5 kg (12 lb 2 oz) |
| DIMENSIONS (WXHXD) | 482 x 44 x 285 mm (19 x 1 3/4 x 11 1/4 inches) |
| ATTENUATION (PASSIVE) | 0 dB or 10 dB |
| POWER CONSUMPTION | 30 W when accommodating six tuner modules included in the UWP-X1/X2 package |
| AUDIO OUTPUT | XLR-3-32 type (x7), balanced |
| POWER REQUIREMENT | U type: AC 120 V, 60 Hz CE type: AC 230 V, 50/60 Hz |
