Sony HDVF-20A
2-inch Type HD B/W CRT Viewfinder

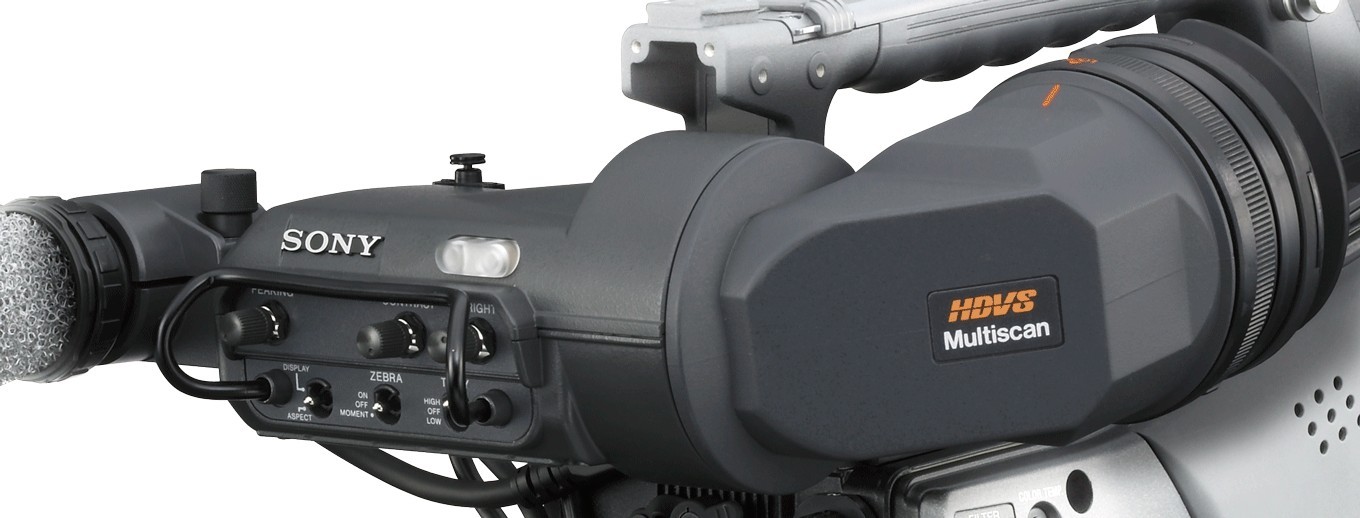

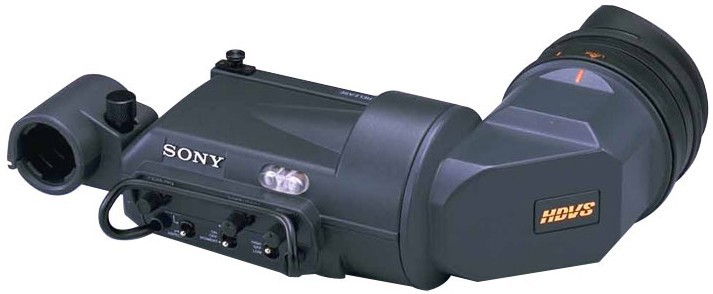

The HDVF-20A is a 2.0" HD viewfinder for the HDCAM series of professional camcorders. The advent of high definition requires a more sophisticated viewfinder. The extra resolution provided with this unit guarantees the camera operator ample detail when attempting to discern focus.
2-inch(*) 16:9 widescreen B/W CRT viewfinder for the HDW Series, HDC1000R series and the New HSC300 HD/SD Cameras. (*)Viewable area measured diagonally
• 2-inch 16:9 widescreen B/W CRT viewfinder for the HDW-F900 (optional), HDW-750 (supplied), HDW-730 (supplied), HDW-730S (supplied) and HDC-950 (optional)
• High resolution—500 TV lines at center in both 16:9 and 4:3 modes
• Accommodates multiple frame rates
• 16:9/4:3 switchable
• The eye-piece is removable from the viewfinder to allow direct view of the CRT
• Marker indication on/off function
• A tally lamp for the camera operator is located on the viewfinder body so it can be seen even when not looking at the viewfinder screen (a sliding cover is available for this lamp)
• Comes equipped with a new external microphone
| WEIGHT | 600 g (1 lb 5 oz) |
|---|---|
| EXTERIOR DIMENSIONS | 239 x 76 x 210 mm (9 1/2 x 3 x 8 3/8 inches) (w/h/d) |
| STORAGE TEMPERATURE | - 20 |
| OPERATING TEMPERATURE | - 20 |
| POWER CONSUMPTION | 4 W |
| POWER REQUIREMENT | 10.5 to 17 V DC |
| VIDEO INPUT | 1.0 Vp-p |
| PIXEL RESOLUTION | 500 TV lines (at center) - Horizontal |
