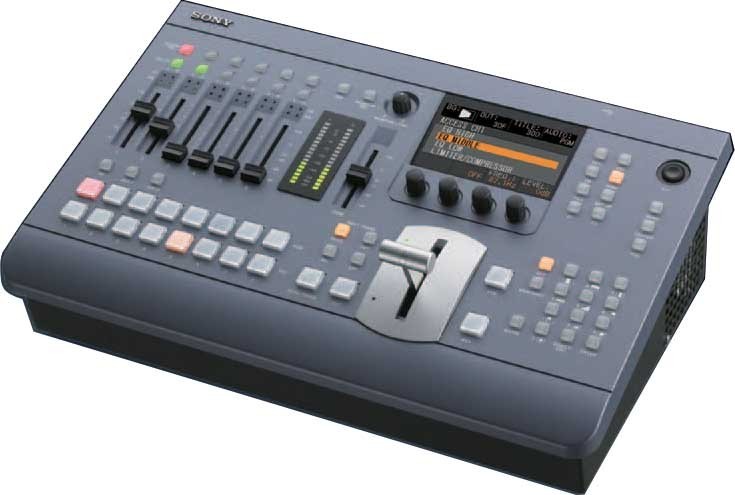

Sony MCS8M Compact Audio Video Mixing Switcher

Compact HD/SD Switcher. (Mfr # MCS-8M)

The Sony MCS-8M is a multi-format switcher with a built-in audio mixer and frame synchronizer. Inside a compact body, the MCS-8M packs excellent cost efficiency and affordability along with a great range of features.

This user-friendly, multi-format switcher has many preset DME wipe patterns, a built-in Multi-viewer, one-channel frame memory output, an Input Freeze function for each source, the ability to import still images via USB port, a 3D Mode function, a six-channel audio mixer, and more.

In addition, the MCS-8M Multi-format Compact Switcher is designed to be intuitive and simple to operate – an ideal content creation tool for live event programming. Affordable and powerful, it can handle wedding functions, product promotions, event and live staging, music clip creation, and all types of business activity including conferences and seminars.

• 8 Inputs: Multi-format Capability
HD Mode: (4 x HD-SDI, 3 x HDMI, 1x DVI-I) with Frame Synchronizer function
SD Mode: (4 x SD-SDI, 3 x Analog Composite, 1 x DVI-I) with Frame Synchronizer function

• 4 Inputs: Multi-format Capability
HD Mode: PGM (HD-SDI), AUX1 (HD-SDI), AUX2 (HD-SDI and DVI-D), Multi-viewer (DVI-D and HD-SDI)
SD Mode: PGM (SD-SDI), AUX1 (SD-SDI), AUX2 (SD-SDI and Analog Composite), Multi-viewer (DVI-D and SD-SDI)

• Multi-viewing function
This function splits the screen into ten or four windows to show multiple images on a single monitor.

• 1 Keyer
Self, Split, Auto Select, Linear, Pattern, Auto Chromakey, Border (Flat Colour)

• Keyer Transition
Cut, Mix, Standard Wipe patterns, Transition rate settings

• 3D Mode
(L/R Link Cut, Mix, Side-By-Side Output)

• Background Transition
Cut, Mix, Standard Wipe patterns, DME Wipe patterns, Transition rate settings

• Additional Features
- 1M/E + 1 Key + Aux Mix
- 1-ch Frame Memory Output
- Input Freeze function for each source
- Import Still Image function via USB port
- 6-ch Audio Mixer function with audio delay




WEIGHT 5 kg (11 lb)
DIMENSIONS (WXHXD) 420 x 270 x 122 mm (16 5/8 x 10 3/4 x 4 7/8 inches)
OPERATING TEMPERATURE 5
POWER CONSUMPTION Max. 80 W
POWER REQUIREMENT 100 V AC to 240 V AC
RECORDING FORMAT(S) 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 480i/59.94, 576i/50




Standard Manufacturer's Warranty
