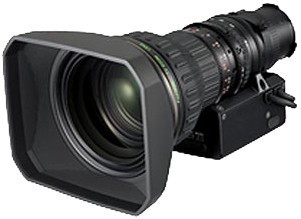

Fujinon ZA22x7.6B - Lens Operation Type:BMD-DSD

Fujinon 2/3" HD Teleconferencing Style

ZA22x7.6BMD-DSD
Select Series Value Priced Standard Remote control lens without extender for use in Teleconferencing, Tower Cam, POV and other applications requiring full analog remote control of zoom, focus and iris. Remote control via Fujinon controllers, Pan/Tilt units or third party controllers is possible.

ZA22x7.6BEMD-DSD
Select Series Value Priced Telephoto Remote control lens with 2X extender for use in Teleconferencing, Tower Cam, POV and other applications requiring full analog remote control of zoom, focus and iris. Remote control via Fujinon controllers, Pan/Tilt units or third party controllers is possible.




WEIGHT 1.82 kg (ZA22X7.6BEMD)
ZOOM RATIO 22X
IMAGING DEVICE 2/3"
FOCAL LENGTH (1X) 7.6 to 167 mm (2X) 15.2 to 334mm
MINIMUM OBJECT DISTANCE 1.07 m (from Image Plane)
EXTENDER 2x
MAXIMUM RELATIVE APERTURE 1:1.8(7.6 ~ 120mm) 1:2.5 (167mm)
ANGULAR FIELD OF VIEW (1X) 7.6 mm 64
WEIGHT (W/O HOOD) 1.72 kg (ZA22X7.6BMD)
M.O.D FROM FRONT OF LENS 0.8m




Standard Manufacturer's Warranty
