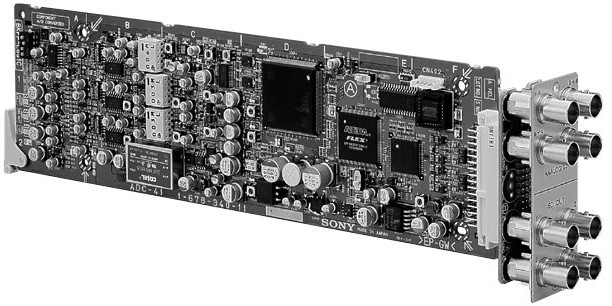

Sony BKPF-L601C

The BKPF-L601C is a high quality yet cost effective A to D converter board which converts a 525 or 625-line component analog video signal to a component serial digital video signal. Y, B-Y, R-Y or RGB signals can be input. Four distribution outputs of the converted signal are provided.

The BKPF-L Series function boards install in the PFV-L Series Interface Units in any combination with other BKPF-L Series function boards.

• 10-bit conversion and signal path.
• 2X oversampling.
• CCIR, Betacam™ with 7.5% or 0% setup or RGB signal inputs.
• Four serial digital distribution outputs.
• Automatic 525/625-line selection.
• EDH insertion.
