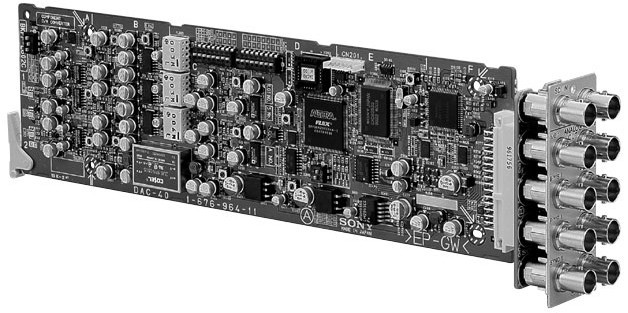

Sony BKPF-L602C

The BKPF-L602C is a high quality yet cost effective video D to A converter board which converts a 525 or 625-line component serial digital video signal to a component analog video signal. Y, B-Y, R-Y or RGB signals can be selected for outputs. Two distribution outputs of the converted signal are provided.

BKPF-L Series function boards can be installed in the PFV-L Series Interface Units in any combination.

• 10-bit conversion and signal path.
• 525/625 component serial digital input with active-through outputs.
• Two distribution outputs of CCIR, Betacam with 7.5% or 0% setup or RGB signals.
• Two Sync outputs.
• Automatic 525/625-line detection.
• EDH monitoring.
• SDI input presence lamp.
