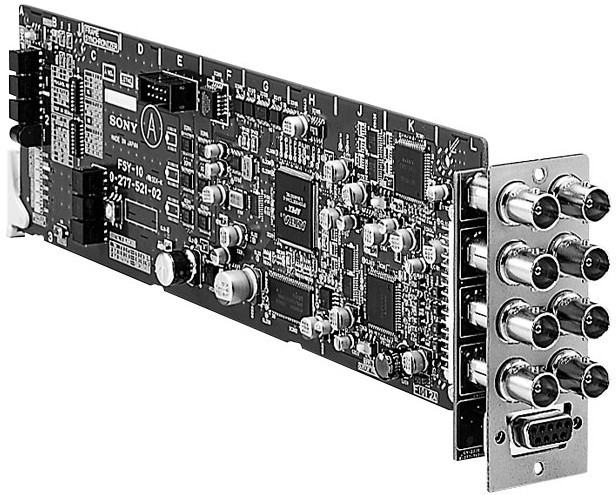

4:2:2 Frame/Line Synchronizer board
This 10-bit serial 4:2:2 synchroniser features a Freeze control that is field/frame auto/manual selectable and also includes phase adjustment. The selection of frame sync or line sync mode solves timing problem in a component serial digital environment. Up to eight embedded audio channels can be passed. Four distribution outputs are provided.
The BKPF-L Series function boards install in the PFV-L Series Interface Units in any combination with other BKPF-L Series function boards.
• High performance frame/line synchronizer
10-bit 4:2:2 internal processing
Supports SMPTE259M-C
One equalized input with active loop-through output
Four distribution outputs
Black burst reference input with passive loop-through output
GPI input
• Two synchronization modes selectable
Frame Synchronization mode: synchronizes the input signal to the external reference in steps of a single frame
Line Synchronization mode: synchronizes the input signal to the external reference in steps of a single line
• H/V phase adjustment available in Frame Synchronization mode
• Freeze function when an error is detected in the input signal
Auto/Manual freeze selectable
Field/Frame freeze selectable
• Passes eight embedded audio channels and other ancillary data in VBI
Automatically mutes embedded audio when picture frozen
• EDH monitoring and insertion
CORD / CABLE LENGTH | 200 m max. (with Belden 8281, Fujikura 5C2V or equivalent coaxial cable) |
---|---|
WEIGHT | Board Approx. 130 g (5 oz) / Connector panel Approx. 120 g (4 oz) |
DIMENSIONS (WXHXD) | Board 77 x 267 mm (3 1/8 x 10 3/4 inches) (h/w) / Connector panel 33 x 85 mm (1 5/16 x 3 3/8 inches) (w/h) |
VIDEO OUTPUT | Video Standard: 525/625 component serial digital signal (SDI), conforming to SMPTE259M-C, 270 Mb/s |
POWER REQUIREMENT | +5 V DC: 0.7 A |
VIDEO INPUT | Video Standard: 525/625 component serial digital signal (SDI), conforming to SMPTE259M-C, 270 Mb/s |
• Standard Manufacturer's Warranty
• Slot Number Label
• Installation Manual
• Installation Guide
