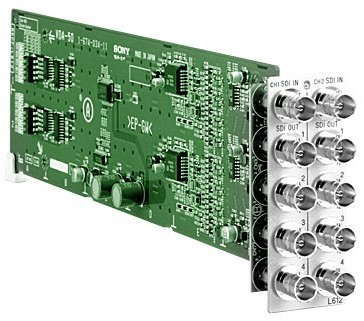

Sony BKPF-L612

The BKPF-L612 is a two-input SDI distribution amplifier board, distributing each input to four outputs. It accepts any component or composite serial digital video signal.

The BKPF-L612 can operate at bit rates of up to 540 Mbps (143, 177, 270, 360 and 540 Mbps serial formats) and can be used for DVB/ASI signal distribution.

By installing dual, one input - four outputs distribution amplifier boards, like the BKPF-L612, into a PFV-L10 interface unit, a high packing density distribution amplifier unit can be built up.

The BKPF-L Series function boards install in the PFV-L Series Interface Units in any combination with other BKPF-L Series function boards.

• Four equalized and reclocked distribution outputs from each input.
• Auto selection of 143, 177, 270, 360 and 540 Mbps serial formats (manual selection also available with on-board switch)
• High-quality 10-bit signal processing.
• Automatic equalization for output cable lengths of up to 150m/200 m (at 540 Mbps/360, 270, 177, 143 Mbps with Belden 8281, Fujikura 5C2V or equivalent cable)
• Accepts DVB/ASI signals.
• SDI input presence lamp.
