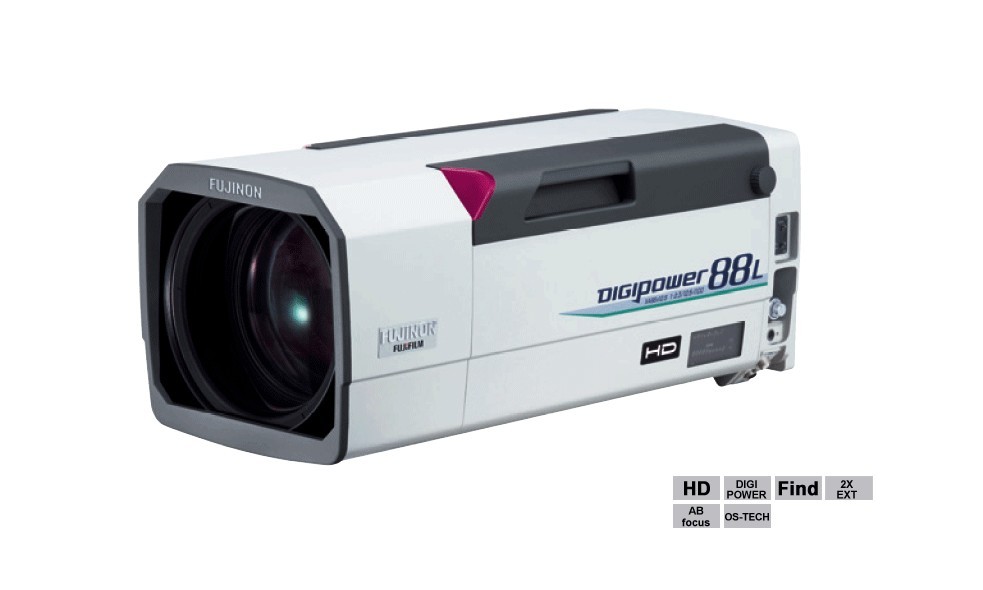

FUJINON XA88x8.8BESM - Lens Operation Type:BESM

Telephoto field lens

FUJINON

Telephoto field lens combines the industries widest angle in class with an 88X zoom range. Featuring Fujinon's exclusive Aspheric Technology and newly developed EBC coating to reduce ghost and flare and increase light transmission. Exclusive anti-fogging design minimizes lens fogging and reduces downtime due to moisture. Full remote control via RS-232 serial data port is possible. 13 bit encoder output is standard for virtual applications.

XA88x8.8BESM
with OS-tech and advanced back focus

XA88x8.8BESM-SK
with OS-tech and advanced back focus

Remote Macro Controller and Control Unit for OS-TECH are recommended.




DIMENSION (HXWXD) 258 x 270 x 625mm (with PF)
WEIGHT 25kg (with PF)
ZOOM RATIO 88x
FOCAL LENGTH 8.8 - 777mm / 17.6 - 1554mm
MINIMUM OBJECT DISTANCE 2.9m
EXTENDER 2x
MAXIMUM RELATIVE APERTURE F1.7 (8.8 - 348mm) / F3.8 (777mm)






Standard Manufacturer's Warranty
