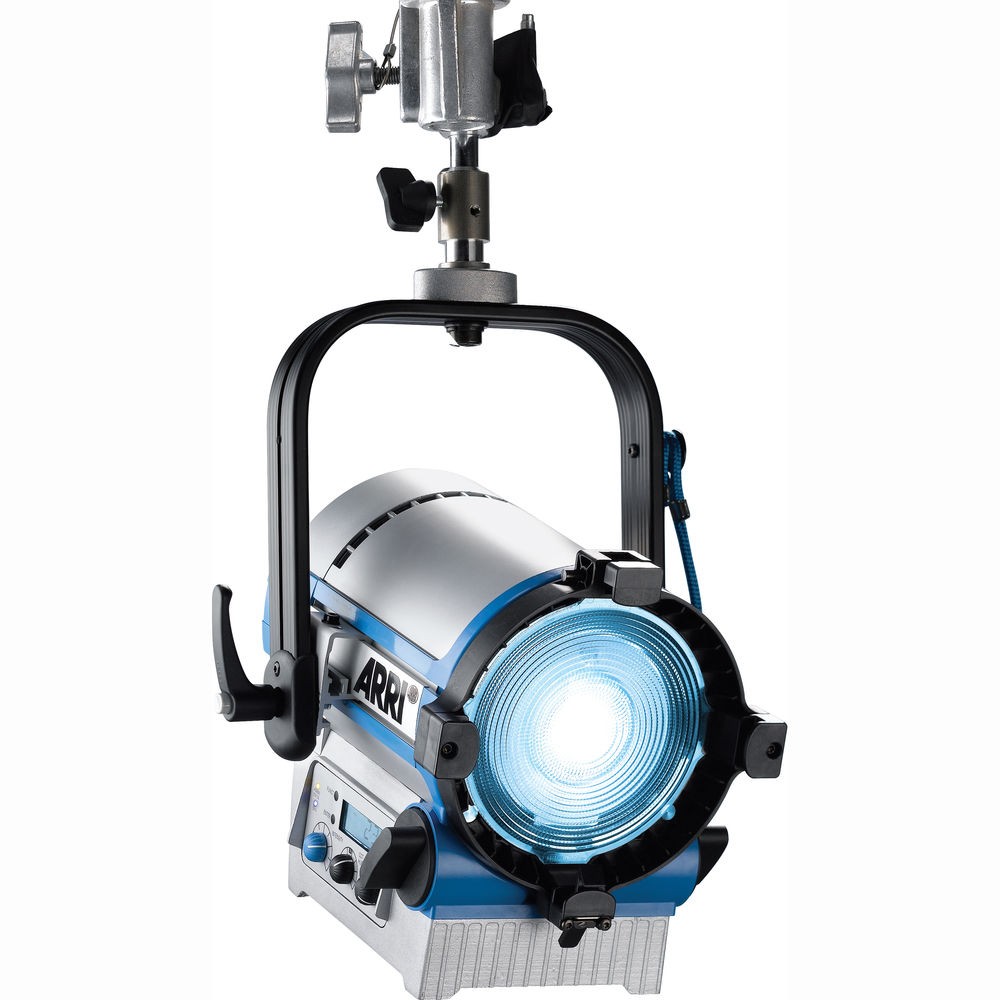

Arri L5-C LED Fresnel fixture - Hanging (Blue/Silver)

L series L5-C LED, Hanging, Blue/Silver, 1.5 m Cable, Bare Ends. (Mfr # L0.0001958)

The L5-C LED Fresnel fixture color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000K, between full plus or minus green and RGBW colors.

The ARRI L-Series is an LED Fresnel fixture which is so close to its conventional counterpart in function and performance that it creates a previously unattainable opportunity, like-for-like replacement of traditional Fresnels with LED- based units. The L5 serries compact size and low weight allow the L5 to be rigged in tight places and hung from low ceilings. The L5 is also ideal for cramped location shoots and interview setups. Low heat allows safer and more comfortable shooting conditions.

The L5 is approximately 45% brighter than a 300 watt tungsten Fresnel, but only consumes 115 watts. When compared to the L7, the L5 is half the weight and size.

HANGING

16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin), 1.5 m (5 ft) Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.

Key Features:

  • Fully Tuneable from 2,800 K - 10,000 K
  • Plus/Minusgreen correction
  • Vibrate Color Selection (RGB+W Color Gamut)
  • Hue and Saturation Control
  • High Color Rendering
  • Low Power Consumption (115 W Nominal)
  • Fully Dimmable
  • Lightweight and Compact
  • True Fresnel Lens Light Characteristics
  • On-Board Battery Connection (23 - 36V DC)
  • Onboard DMX In and Out
  • RDM Implementation
  • USB Mini Connection for Firmware Updates
  • Available in Blue/Silver and Black
  • Fan Mode Selection
  • powerCON TRUE1 Power Connector

Note: Barndoors are not included with L5 and have to be ordered separately.




WEIGHT Manual Version - 5.1 kg (11.2 lbs) Pole Op Version - 7 kg (15.4 lbs)
TILT RANGE / ANGLE +/- 90°
OPTICAL SYSTEM Focusable Fresnel
MOUNTING 16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin)
POWER CONSUMPTION 115 W Nominal
BEAM ANGLE 14° - 50° (Half Peak Angle)
LENS DIAMETER 137 mm / 5 inch






Standard Manufacturer's Warranty.
