COSMOLIGHT JUMBO AND AIRCRAFT

JUMBO AND AIRCRAFT FOR PAR 64

This powerful multilamp luminaire is an indispensable tool for lighting large areas. The high intensity output of the fixture permits a minimum number of units for the required lighting level. It is particularly suitable for use in film shooting, commercials, live shows and concerts.

cosmolight

MAIN FEATURES

  • Robust and lightweight aluminium construction.
  • Jumbo model available with 4, 6, 8, 9, 12, 24 lamps PAR 64 1000W-230V.
  • Aircraft model available with 8, 16, 24 lamps PAR 64 600W-28V.
  • Each bank swivels for beam control and can be blocked with its own brake.

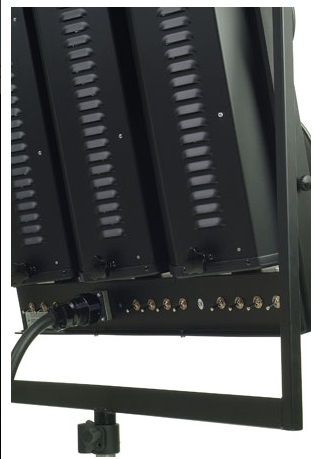

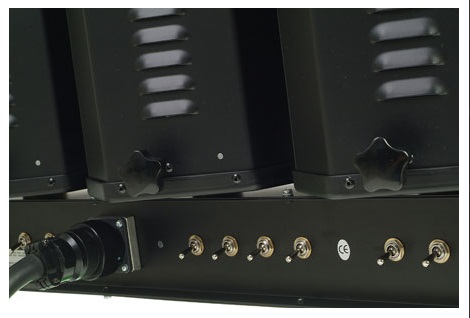

  • One switch for each lamp.

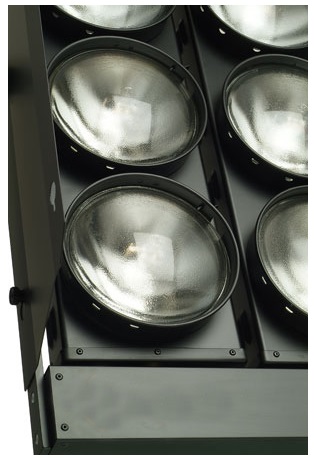

  • Individual lamp rotates 360° to orient oval beam pattern to horizontal or vertical position.

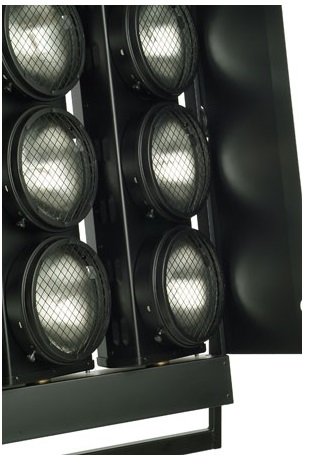

  • Lamps are secured in place by a clip and can be easily replaced with one hand by simply unblocking the clip.
  • Quick-lock power connector in standard configuration.
  • Customized electrical configurations available: one cable for each bank, 3-phase 400V, socapex.
  • The eight-lamps configuration is available with double yoke mounting connectors and adjustable yoke for both vertical and horizontal mounting.

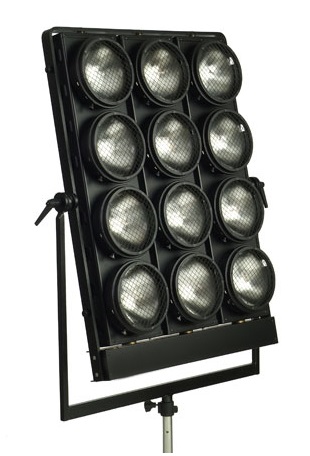

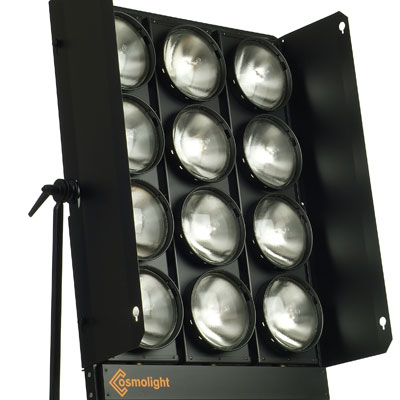

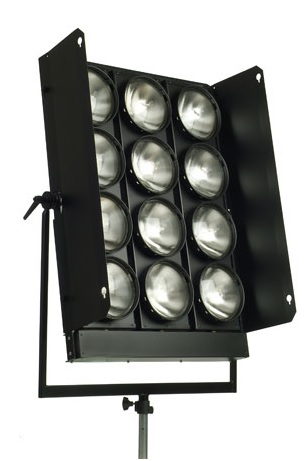

  • Comes supplied complete with barndoors, single wire meshes and cable.

TECHNICAL DATA

  • Aluminium construction.
  • High temperature painting.
  • Steel yoke mounting with 28mm (1-1/8”) spigot.
  • 5mt H07RNF cable with quick lock connector.
  • Jumbo lamp base GX 16d.
  • Aircraft lamp base screw terminal cap.
  • Jumbo supply voltage 230-240V~ (380V for the 3-phase configuration).
  • Aircraft supply voltage 230-240V~ (28V lamps connected in series).
  • Correlated color temperature 3200K.
  • IP 20.
  • CE compliant.

ACCESSORIES

RC951 RC 951
Single safety mesh gr
RC900-20 RC 900/20
Cable 3x10mmq (5,00 mt) gr 3000

TECHNICAL DRAWING

ST JUMBOAIRCRAFT

LAMPS

BASE GX 16d - 3200K
MOD. JAMBO WATT ANSI LIF
RC 904 1000W - 220V

ORDERING CODES

RC 904 - Jumbo for 4 PAR 64 lamp 1000W -230-240V~

RC 910 - Jumbo for 6 PAR 64 lamp 1000W-230-240V~

RC 990 - Jumbo for 8 PAR 64 lamp 1000W-230-240V~

RC 920 - Jumbo for 9 PAR 64 lamp 1000W -230-240V~

RC 930 - Jumbo for 12 PAR 64 lamp 1000W-230-240V~

RC 940 - Jumbo for 16 PAR 64 lamp 1000W-230-240V~

RC 950 - Jumbo for 24 PAR 64 lamp 1000W-230-240V~



RC 960 - Aircraft for 8 PAR 64 lamp 600W-28V

RC 970 - Aircraft for 16 PAR 64 lamp 600W-28V

RC 980 - Aircraft for 24 PAR 64 lamp 600W-28V
