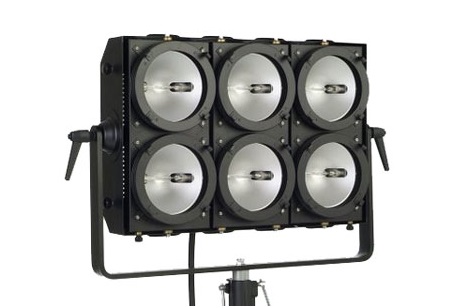

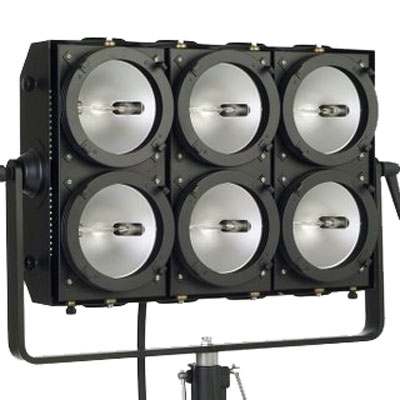

COSMOLIGHT RC 600

MINIBRUTE WITH 6 LAMPS 800/100W

This powerful multilamp luminaire is composed of six open-face tungsten halogen lamps and it is an indispensable tool for lighting medium/large areas. It provides an extremely bright, soft and even illumination and the high intensity output of the fixture permits a minimum number of units for the required lighting level. It is particularly suitable for use in film shooting, commercials, live shows and concerts.

MAIN FEATURES

  • Robust steel construction.
  • Each bank swivels for beam control and can be blocked with its own brake.
  • One switch for each lamp.
  • Individual lamp rotates 360° to orient oval beam pattern to horizontal or vertical position.
  • Quick-lock power connector in standard configuration.
  • Customized electrical configurations available: one cable for each bank, 3-phase 400V, socapex.

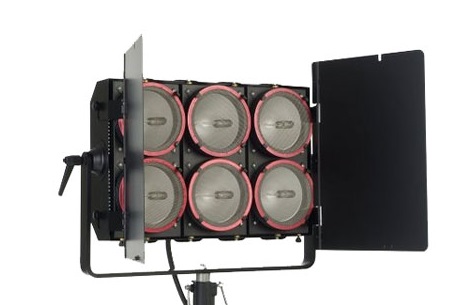

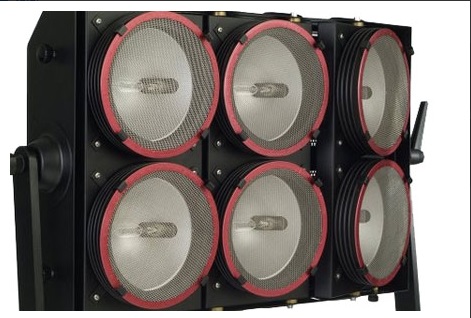

  • Comes supplied complete with barndoors, single wire meshes, single accessory holders and cable.

TECHNICAL DATA

  • Steel construction.
  • High temperature painting.
  • Sanded and treated aluminium reflectors.
  • Aluminium yoke mounting with 28mm (1-1/8”) spigot.
  • 5mt H07RNF cable with quick lock connector.
  • Lamp base R7s.
  • Supply voltage 230-240V~ (380V for the 3-phase configuration).
  • Correlated color temperature 3200K.
  • IP 20.
  • CE compliant.
  • Weight 14 kg.

ACCESSORIES

RC600-10 RC 600/10
Two-leaf barndoor gr 1500
RC600-20 RC 600/20
Gel frame gr 350
RC952 RC 952
Single safety mesh gr 40
RC900-20 RC 900/20
Cable 3x10mmq (5,00 mt) gr 3000

TECHNICAL DRAWING

ST RC600


PHOTOMETRIC DATA

800W
DISTANCE mt. 3 5 7
Flood 90° Lux 7250 2900 1500

1000W
DISTANCE mt. 3 5  7
Flood 90° Lux 9250 3750  1900

ORDERING CODES

RC 600/80 - Minibrute with 6 lamps 800W

RC 600/100 - Minibrute with 6 lamps 1000W
