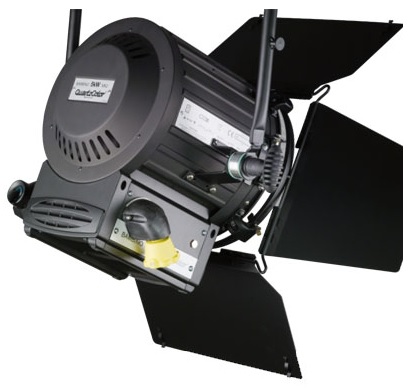

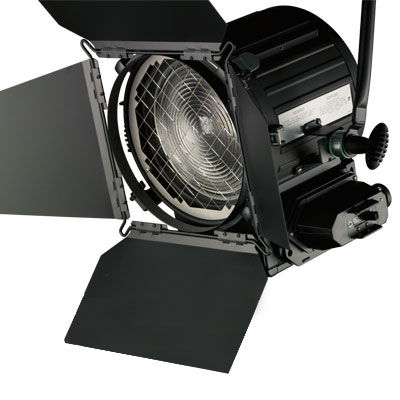

quartz color Bambino 5kW

MAIN FEATURES

• Lightweight and compact, ideal for location work.
• Optimized combination of steel, die cast and extruded aluminium for both sturdiness and lightweight.
• High quality mechanics for years of reliable operations.
• Easy one hand action spring loaded top catch for security but with quick access for accessory fitting and removal.
• Easy running accessory support brackets and lower accessory support bracket fitted with barndoor safety catch (extra safety).
• Wire focus system for a smooth and precise focusing action, maintainance-free.
• Side mounted pole operated focus mechanism easily repositioned to manual use.
• Front rigging hook.
• Superb light control from generously proportioned barndoors.
• Easy to service and maintain.
• CE compliance.

TECHNICAL DATA

OPTICAL

• Lens: 250mm diameter high efficiency low expansion borosilicate Fresnel lens on spring teflon supports.
• Spherical reflector in bimetallic (99.99/99.95%) aluminium with special anodised coating for high efficiency finish.
• Range: 14,5° to 60,3°

ELECTRICAL

• Lamp base: G38 (mogul bi-post)
• Power cable: 3x 4mm² heavy duty rubber bare ended cable. 5mt on manual version, 2mt on pole operated version.
• Switching:head-mounted toggle switch 45A/250V, rotary switch 45A/250V on request.
• Power supply: 230V 50/60 Hz, 120V 60 Hz
• Protection class : class 1, ground connection required.

SAFETY

• Safety guard: stainless steel 25 x 25mm.
• Standards compliance: CE

OPERATIONAL

• High efficiency convection cooling.
• Tilt recommended angle of use: -60° / 0° / 60°
• Max operating ambient temperature: 45°C
• IP rating: IP 20
• Max. housing surface temperature: 240°C
• Minimum distances from inflammable surfaces: back 0.30 mt, front 3,5mt

MECHANICAL

• Paint/ finishing: powder coated epoxy paint with special extra high temperature treatment in critical areas. External textured low gloss finish.
• Housing: composed by two parts for easy inspection and maintainance: the lamp housing is formed sheet steel, the carriage housing is die cast and extruded aluminium.
• Lamp socket: specifically designed G38 base lamp socket with quick release lever activation. Contacts in brass.
• Mounting PO stirrup: robust tubular steel construction, pan & tilt clutch gear mechanisms with friction clutches for manual override. Fitted with 28mm (11/8") spigot.
• Mounting MO stirrup: robust tubular steel construction fitted with 28mm (1 1/8”) complete with lateral thrust bearing and lock off knob for quick and secure locking.
• Accessory fitting: die cast aluminium accessory support brackets positioned at an X shape for true barndoor rotation. The lower support bracket includes a quick release barndoor safety catch which prevents the falling of the barndoor in case forgetting to close the top hinged bracket. Spring loaded top hinged bracket has been designed for very quick opening and closing and for easy accessory fitting and removal by one hand.
• Tilt adjustment: pivot located at centre of gravity for excellent balance and positive locking.
• Focus adjustment: the new wire focus mechanism, reliable and maintenance free, provides a smooth and precise action from spot to flood positions. The wire is stainless steel. The side pole operated mechanism is easily adaptable from pole operation to manual.
• Lamp access: Hinged lens door allowing an easy access for lamp replacement. The hinge assembly can be registered so as to have always a perfect opening lens door, so as to avoid accidents during its opening with accessories loaded.

WEIGHT AND DIMENSIONS

MANUAL OPERATED

• Weight (head + stirrup): 16kg
• Packed weight: 20kg
• Packed volume: 54 x 47 x 55cm

POLE OPERATED

• Weight (head + stirrup): 19kg
• Packed weight: 23kg
• Packed volume: 54 x 47 x 55cm

LAMP

• Tungsten halogen Single ended incandescent lamp type CP29 (FKJ) 5000W / 230-240V
• LCL (lamp centre length) 165mm
• Base G38 (medium bi-post)
• Lumens 135,000
• Rated life 500 hours
• Colour temperature 3200K

TECHNICAL DRAWING

PHOTOMETRIC DATA

ORDERING CODES

27660 - Bambino 5kW supplied with manual stirrup, colour frame, four-leaf rotating barndoor

27662 - Bambino 5kW supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor

ACCESSORIES

28093 - Gel frame diam. 323mm

28306 - Scrim set 4 pieces (full single+ full double + ½ single + ½ double; diam. 320mm)

28090 - Cone diam. 323mm small aperture

28091 - Cone diam. 323mm medium aperture

28092 - Cone diam. 323mm large aperture

28070 - 4-leaf rotating barndoor diam. 323mm

28871 - 8-leaf rotating barndoor diam. 323mm

RC 4340 - Stainless steel safety cable 4mm diam., 80cm length

RC C100 - C clamp with 28mm (11/8") socket
