quartz color Studio 2kW

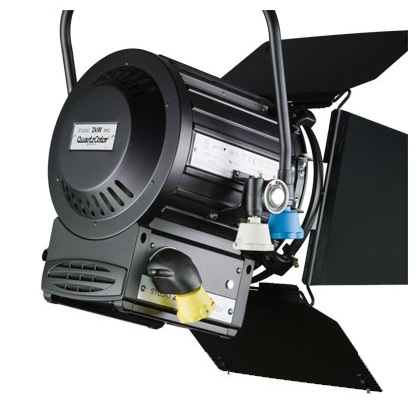

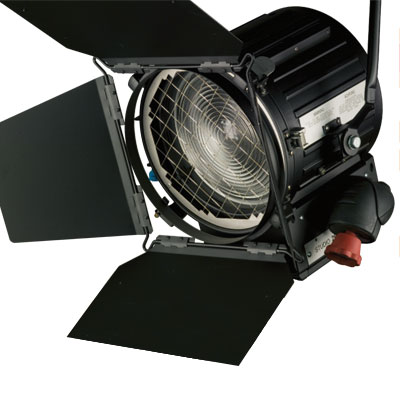

The Studio range of products has been developed specifically for TV applications where there is a need for high quality and balanced output producing flat and very even field. In the market for several years now, the QuartzColor Studio range has become a standard and a reference within the industry.

MAIN FEATURES

  • Modern design.
  • Optimized combination of stainless steel, die cast and extruded aluminium for both sturdiness and lightweight.
  • Specifically designed optics with large size lens and reflector for high quality light output.
  • The lens door has been specifically designed via its deeper profile to remove unwanted light spill.
  • High quality epoxy powder paint against corrosion.
  • Scratch resistant black non-reflective housing.
  • Easy running accessory support brackets and lower accessory support bracket fitted with barndoor safety catch (extra safety).
  • Wire focus system for a smooth and precise focusing action, maintainance-free.
  • Front rigging hook.
  • Side mounted pole operated focus mechanism easily repositioned to manual use.
  • Easy to service and maintain.
  • CE compliance.

TECHNICAL DATA

OPTICAL

  • Lens: 250mm diameter high efficiency low expansion borosilicate Fresnel lens on spring teflon supports.
  • Spherical reflector in bimetallic (99.99/99.95%) aluminium with special anodised coating for high efficiency finish.
  • Range: 10.2° to 57,2°

ELECTRICAL

  • Lamp base: G38 (medium bi-post).
  • Power cable: 3x 2.5mm² heavy duty rubber bare ended cable. 5mt on manual version, 2mt on pole operated version.
  • Switching: head mounted toggle switch 16A/250V, rotary switch 20A on request.
  • Power supply: 230V 50/60 Hz, 120V 60 Hz.
  • Protection class : class 1, ground connection required.

SAFETY

  • Safety guard: stainless steel 25 x 25mm.
  • Standards compliance: CE

OPERATIONAL

  • High efficiency convection cooling.
  • Tilt recommended angle of use: -90° / 0° / 90°
  • Max operating ambient temperature: 45°C
  • IP rating: IP 20
  • Max. housing surface temperature: 220°C
  • Minimum distances from inflammable surfaces: back 0.30 mt, front 2mt

MECHANICAL

  • Paint/ finishing: powder coated epoxy paint with special extra high temperature treatment in critical areas. External textured low gloss finish.
  • Housing: composed by two parts for easy inspection and maintainance: the lamp housing is formed sheet steel, the carriage housing is die cast and extruded aluminium.
  • Lamp socket: specifically designed G38 base lamp socket. Contacts in brass. Brass wing bolt provides easy lamp replacement.
  • Mounting PO stirrup: robust tubular steel construction, pan & tilt clutch gear mechanisms with friction clutches for manual override. Fitted with 28mm (11/8") spigot.
  • Mounting MO stirrup: robust tubular steel construction fitted with 28mm (1 1/8”) complete with lateral thrust bearing and lock off knob for quick and secure locking.
  • Accessory fitting: die cast aluminium accessory support brackets positioned at an X shape for true barndoor rotation. The lower support bracket includes a quick release barndoor safety catch which prevents the falling of the barndoor in case forgetting to close the top hinged bracket. Spring loaded top hinged bracket has been designed for very quick opening and closing and for easy, one hand accessory fitting and removal.
  • Tilt adjustment: pivot located at centre of gravity for excellent balance and positive locking.
  • Focus adjustment: the new wire focus mechanism, reliable and maintenance free, provides a smooth and precise action from spot to flood positions. The wire is stainless steel. The side pole operated mechanism is easily adaptable from pole operation to manual.
  • Lamp access: hinged lens door allowing an easy access for lamp replacement. The hinge assembly can be registered to have always a perfect opening lens door, so as to avoid accidents during its opening with accessories loaded.

WEIGHT AND DIMENSIONS

MANUAL OPERATED

  • Weight (head + stirrup): 11kg
  • Packed weight: 17kg
  • Packed volume: 54 x 47 x 55cm

POLE OPERATED

  • Weight (head + stirrup): 15kg
  • Packed weight: 18kg
  • Packed volume: 54 x 47 x 55cm

LAMP

  • Tungsten halogen single ended incandescent lamp type CP41 (FKJ) 2000W/230V-240V,
  • LCL (lamp centre length) 127mm
  • Base G38(medium bi-post)
  • Lumens 54.000
  • Rated life 400 hours
  • Colour temperature 3200K

TECHNICAL DRAWING

studio2kw


PHOTOMETRIC DATA

DISTANCE mt. 3 5 10 15
Lux Spot (12°) 35.800 12.900 3.200 1.400
Lux Flood (58°) 5.000 1.800 450 200
Beam diam. spot (mt) 0,5 0,9 1,7 2,6
Beam diam. flood (mt) 3,3 5,5 11 16,6

from CP41 (FKJ) 2000W 230V lamp - G38 base

ORDERING CODES

27260 - STUDIO 2kW MO supplied with manual stirrup, colour frame, four-leaf rotating barndoor.

27260S1 - STUDIO 2kW MO supplied with manual stirrup, colour frame, four-leaf rotating barndoor , without switch.

27262 - STUDIO 2kW PO supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor.

27262S1 - STUDIO 2kW PO supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor, without switch.

27262S2 - STUDIO 2kW PO supplied with pole operated stirrup, colour frame, four-leaf rotating barndoor, with rotary switch.

ACCESSORIES

28093 - Gel frame diam. 323mm.

28306 - Scrim set 4 pieces (full single+ full double + ½ single + ½ double; diam. 320mm).

28090 - Cone diam. 323mm small aperture.

28091 - Cone diam. 323mm medium aperture.

28092 - Cone diam. 323mm large aperture.

28070 - 4-leaf rotating barndoor diam. 323mm.

28871 - 8-leaf rotating barndoor diam. 323mm.

5270.172 - Spare Pole Operated stirrup (Pan & Tilt) w/ 28mm (11/8") spigot and safety bond for Bambino Fresnel 2kW MO Mk2 & Studio Fresnel 1kW PO Mk2).

5270.172ST - Pole Operated stirrup (Pan& double Tilt) w/ 28mm (11/8") spigot and safety bond(for Studio Fresnel1kW PO Mk2).

RC 4340 - Stainless steel safety cable 4mm diam., 80cm length.

RC C100 - C clamp with 28mm (11/8") socket.
