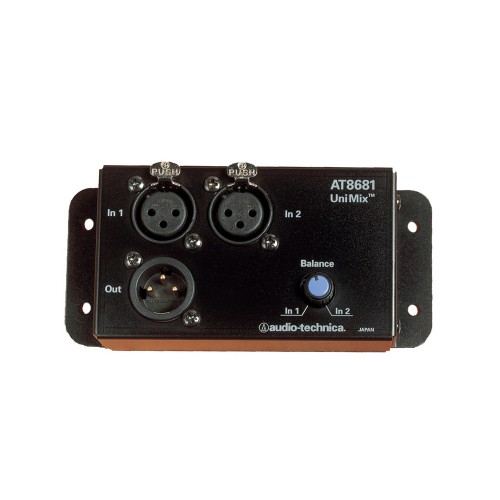

audio-technica AT8681
UNIMIX® 2-TO-1 MICROPHONE COMBINER WITH BALANCE CONTROL
Combines the output from two microphones into one channel
Balance control attenuates each microphone by 6 dB (typical) at midpoint
Professional XLR-type input/output connectors
24-48V DC phantom power and balanced cables required for operation
Permits phantom voltage to pass on to the microphone
Rugged steel housing
| Input Impedance | 10 000 ohms |
| Output Impedance | 250 ohms |
| Maximum Gain | Unity (0 dB), +0/-1.5 dB |
| Frequency Response | 20 - 20 000 Hz |
| Input Attenuation | 33 dB at 1 kHz |
| Power Supply | Phantom Power 24-48V DC, 2-4 mA typical |
| Dimensions | 5.12" (130.0 mm) W x 2.36" (60.0 mm) D x 1.73" (44.0 mm) H |
| Weight | 8.8 oz (250 g) |
