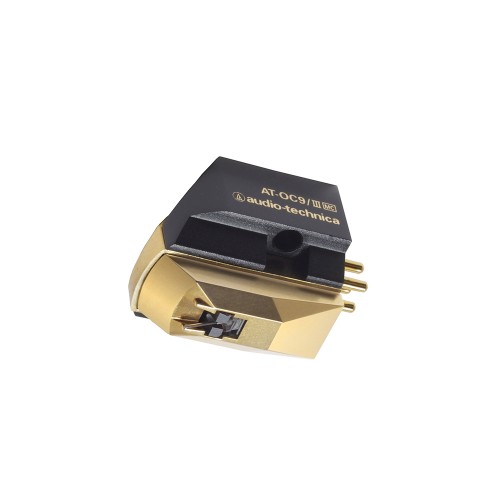

audio-technica AT-OC9/III

MOVING COIL CARTRIDGE

Features a special line contact stylus
Builds on the enduring reputation of its predecessor, the AT-OC9/III
"VC mould" design ensures stability and rigidity
Dual moving coil offers excellent stereo separation
PCOCC wire

AT-OC9/III

AT-OC9/III

MOVING COIL CARTRIDGE

The AT-OC9/III features a special line contact stylus embedded into a low profile solid boron cantilever, ensuring the music signals read by the tip of the stylus are transmitted reliably to the coils.

The OC9's "VC mould" design ensures stability and rigidity whilst the dual moving coil offers excellent stereo separation and improved frequency response for long lasting performance.

The use of PCOCC wire (Pure Copper by Ohno Continuous Casting), a special copper with virtually no transverse crystal barriers to impede signal transmission, perfects the performance of the advanced dual coil design

Special line contact stylus and solid boron cantilever with a 0.26 mm diameter
The cartridge features a special line contact stylus with a 40μm x 7μm curvature radius at the stylus tip. This not only ensures that the music signals engraved in the analogue records will be read out completely but also it gives expression to the highest dynamic compliance of the series. By firmly embedding this line contact stylus in a solid boron cantilever with its 0.26 mm diameter and by bonding it in place, the music signals read by the tip of the stylus are transmitted reliably to the power-generating coils.

Neodymium magnet and permendur yoke have drastically increased the magnetic energy
The magnet is a neodymium magnet with a maximum energy product BHmax of 50[kJ/m3] while a permendur yoke is used with a high saturation flux density and excellent magnetic materials.
Together, they further boost the magnetic field concentrated in the coil gap area.

PCOCC used for coils and terminal pins
PCOCC does not give rise to crystalline interfacing in the transmission direction so audiophiles can enjoy pure transmissions.

Dual moving coil with high separation and wide response
Our unique moving coil type cartridge has a basic structure where one cylindrical coil is used for the left channel and another is used for the right channel. This structure by which power is generated independently for the left and right channels physically provides outstanding separation characteristics. The AT-OC9/III adopts a reverse V-shaped formation for the two left and right coils to reduce the vibration mass as seen from the stylus tip and minimize the unnecessary movement of the coils to further diminish the distortion.

Dual moving coil with high separation and wide response
Our unique moving coil type cartridge has a basic structure where one cylindrical coil is used for the left channel and another is used for the right channel. This structure by which power is generated independently for the left and right channels physically provides outstanding separation characteristics. The leakage of signals from one channel into the other exerts a decisive influence on the stereo expanse as well as on the sound quality. This is because this leakage is tantamount to creating irregular cross modulation. The reason why the dual moving coil system delivers such a clear and finely delineated sound quality is no doubt due to the system’s naturally excellent separation. The AT-F7 features a reverse V-shaped formation for the two left and right coils to reduce the vibration mass as seen from the stylus tip.

VC mould for minimising unnecessary vibration
The VC mould that holds the coils in place is made of a hard synthetic resin which is combined with potassium titanate for increased strength and rigidity.

Rugged body dedicated to achieving a design with increased rigidity
Using a precision-crafted sturdy aluminium alloy as the base, the body’s structure is made of hard resin keep parasitic resonance down to a minimum. This minimizes undesirable vibration while the bottom of the body is plated to achieve greater rigidity and an improved signal-to-noise ratio.



“OUTSTANDING MAGNETIC PROPERTIES”

Neodymium magnet with dramatically enhanced magnetic energy and permendur yoke with high saturation flux density and outstanding magnetic properties.

“MINIMISES UNNECESSARY VIBRATION”

The VC mould that affixes the coil is made with hard synthetic resin containing potassium titanate for increased strength and rigidity whilst minimising unnecessary vibration.

AT-OC9/III
Type Dual Moving Coil
Frequency Response 15 - 50,000Hz
Body Material Aluminium
Channel Separation 30dB (1kHz)
Output Channel Balance 0.5dB (1kHz)
Output Voltage 0.4mV (1kHz and 5cm/sec.)
Vertical Tracking Angle 23°
Vertical Tracking Force Range 1.8 - 2.2g (2.0g standard)
Stylus Shape Special Line contact stylus (curvature radius: )
Stylus Curvature Radius 40 x 7µm
Stylus Construction Nude Square Shank
Cantilever 0.26 mm diameter solid boron
Coil Impedance 12Ω (1kHz)
Coil Inductance 25 µm (1kHz)
DC Resistance 12Ω
Static Compliance 35×10-6cm/dyne
Dynamic Compliance 18×10-6cm/dyne (100Hz)
Recommended Load Impedance Min 100Ω
Weight 8.0g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
Replacement Stylus When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price.
Accessories Included One non-magnetic screwdriver; one brush; two washers; two 12mm mounting screws; two nuts; two 18mm mounting screws; one plastic protector; one set of PCOCC Lead Wires (AT6106)
