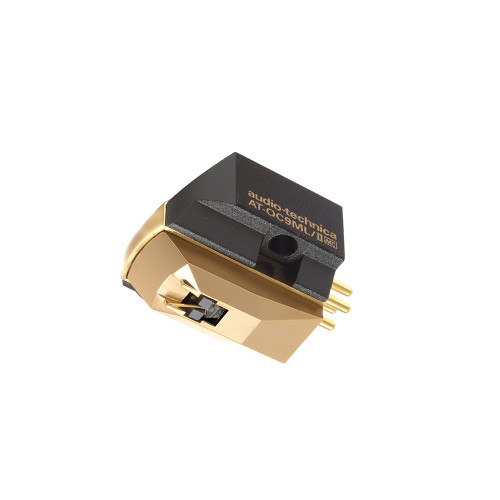

audio-technica AT-OC9ML/II
MOVING COIL CARTRIDGE
Dual-coil system for maximum channel separation
High-flux samarium cobalt magnet for improved electrical generation
PCOCC coil windings for low-loss “transparent” signal transmission
Gold-plated solid boron cantilever
MicroLine™ stylus
AT-OC9ML/II
MOVING COIL CARTRIDGE
The AT-OC9ML/II Dual Moving MicroCoil™ cartridge is a significant achievement in precision manufacturing, with tolerances held to mere thousandths of an inch. Stringent quality control assures that these tolerances, as well as performance criteria, are maintained by every AT-OC9ML/II cartridge. In addition, the AT-OC9ML/II features:
- Dual-coil system for maximum channel separation.
- High-flux samarium cobalt magnet for improved electrical generation.
- PCOCC coil windings for low-loss “transparent” signal transmission.
- Gold-plated solid boron cantilever.
- MicroLine™ stylus
“ENABLES PURER TRANSMISSION”
The PCOCC coil enables purer transmission because it is not subject to grain boundaries in the direction of transmission.
“MAXIMUM CHANNEL SEPARATION”
Dual-coil system for maximum channel separation.
| Type | Dual Moving Coil |
| Mounting | 1/2” centers |
| Frequency Response | 15 - 50,000Hz |
| Body Material | Aluminium |
| Channel Separation | 31dB (1kHz) |
| Output Channel Balance | 1.0dB (1kHz) |
| Output Voltage | 0.4mV (1kHz and 5cm/sec.) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.25 - 1.75g (1.5g standard) |
| Stylus Shape | MicroLine™ |
| Stylus Curvature Radius | MicroLinear™ |
| Stylus Construction | Nude Square Shank |
| Cantilever | Gold-plated solid boron |
| Coil Impedance | 12Ω (1kHz) |
| Coil Inductance | 25µH (1kHz) |
| DC Resistance | 12Ω |
| Static Compliance | 35×10-6cm/dyne |
| Dynamic Compliance | 9×10-6cm/dyne (100Hz) |
| Recommended Load Impedance | Min 100Ω |
| Weight | 8.0g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |
| Replacement Stylus | When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price. |
| Accessories Included | 1 non magnetic screw driver; 1 brush; 2 washers; 2 x 13.5 mm mounting screws; 2 x 18 mm mounting screws; 1 plastic protector; |
