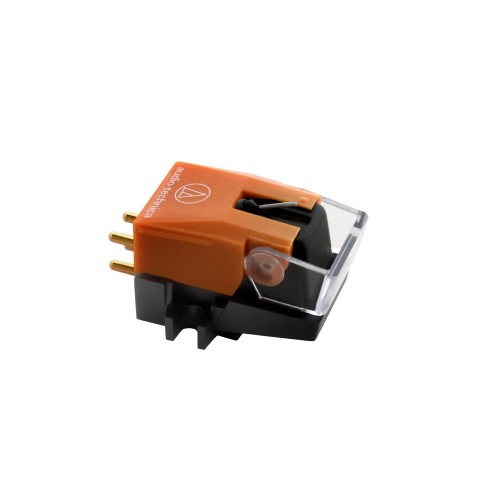

audio-technica AT120EB
MOVING MAGNET CARTRIDGE
Vector-Aligned Dual Magnet design
Exclusive Paratoroidal Signal Generator
Unique signal generating system
Unified, laminated coil core wound with a single piece of wire
Internal mechanical and electrical connections are eliminated
Magnetic losses minimised and better signal transfer ensured
AT120EB
MOVING MAGNET CARTRIDGE
- 0.3 x 0.7 mil nude shank elliptical precision polished diamond
- Para-toroidal coils, long recognised for their high efficiency, are utilised here for the first time in cartridge manufacturing. The result is a series characterised by uniform response and distortion-free performance.
- Gold-plated connectors assure maximum energy transfer.
- Superior imaging and channel separation are achieved through the A-T Vector Aligned Dual Magnet design.
| Type | VM Dual Magnet |
| Mounting | 1/2” centers |
| Frequency Response | 20 - 25,000 Hz |
| Channel Separation | 28 dB (1 kHz) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Output Voltage | 4.0 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force Range | 1.0 to 1.8 g (standard 1.4 g) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Nude Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3,200 ohms (1 kHz) |
| Coil Inductance | 490 mH (1kHz) |
| Static Compliance | 35 x 10-6cm dyne |
| Dynamic Compliance | 10 x 10-6cm / dyne (100Hz) |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200 pF |
| Weight | 6.5 g |
| Dimensions | 17.3 (H) x 16.0 (W) x 28.2 (L) mm |
| Replacement Stylus | ATN120Eb |
| Accessories Included | Non magnetic screw driver; Anti-static stylus brush; Two 8 mm installation screws; Two 5 mm installation screws; Two hexagonal nuts; Two round nuts; Four washers |
