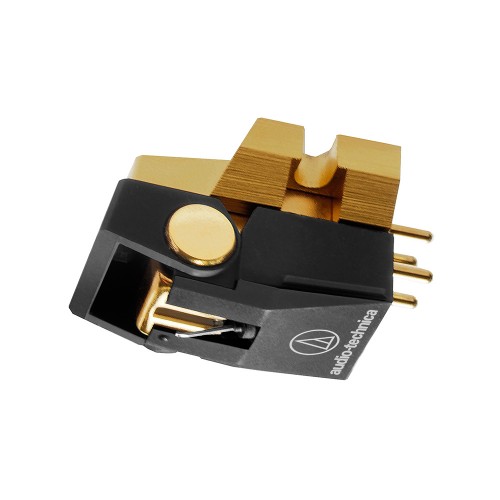

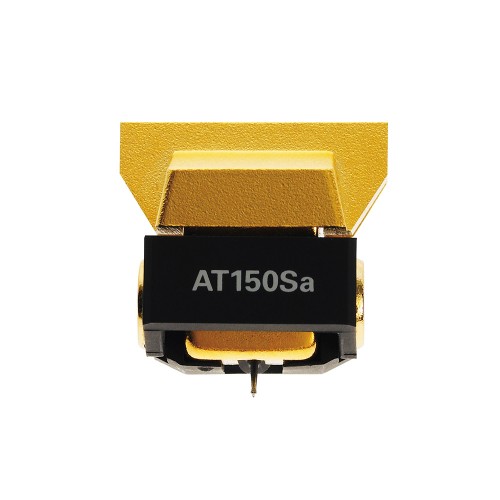

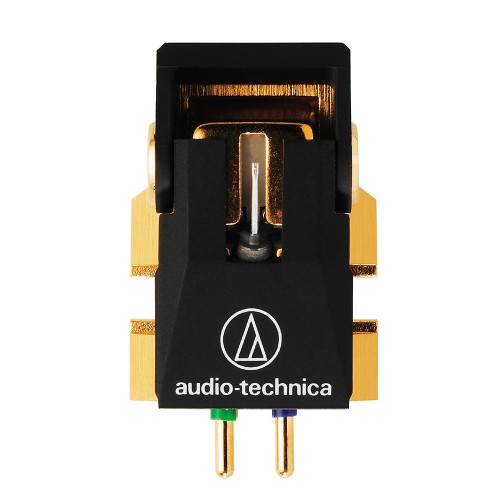

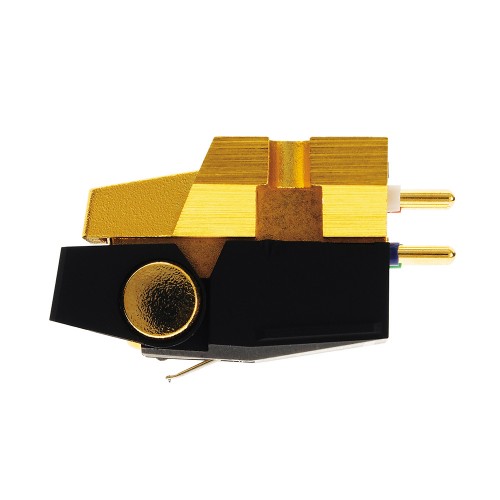

audio-technica AT150SA
MOVING MAGNET CARTRIDGE
Incorporates a Shibata profile diamond
VM type dual magnet system
High performance para-toroidal generator
Aluminium tapered cantilever
Improves shield effect and bass-range resolution
AT150SA
MOVING MAGNET CARTRIDGE
Legendary body design and Shibata profile diamond to bring a rich sound experience.
- Incorporating a Shibata profile diamond, recently used in Audio-Technica's AT33Sa MC cartridge, in this VM cartridge.
- Beautiful mid-high range Shibata-signature sound and strong mid-range volume.
- VM type dual magnet system and high performance para-toroidal generator models allows high quality playback.
- Adopted aluminium taper cantilever with light vibration tips achieved by taper processing.
- Detailed vibrations, detrimental to reproducing high notes, are limited by the robust metal die-cast body to improve shield effect and bass-range resolution.
ROBUST METAL DIE-CAST BODY
Improves shield effect and bass-range resolution whilst limiting vibrations detrimental to the reproduction of high notes.
SHIBATA-SIGNATURE SOUND
Provides a beautiful mid-high range Shibata-signature sound and strong mid-range volume.
| Type | VM Type |
| Mounting | 1/2” centers |
| Frequency Response | 20 - 25,000Hz |
| Channel Separation | 30dB (1kHz) |
| Output Channel Balance | 1.0dB (1kHz) |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Vertical Tracking Angle | 23? |
| Vertical Tracking Force Range | 1.0 – 1.8g (1.4g standard) |
| Stylus Shape | Shibata |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Nude Square Shank |
| Cantilever | Aluminium Tapered Pipe |
| Coil Impedance | 3,200Ω (1kHz) |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000Ω |
| Recommended Load Capacitance | 100 – 200pF |
| Weight | 8.0g |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Replacement Stylus | ATN150Sa |
| Accessories Included | Non-magnetic screw driver x 1; 8mm Installation screw x 2; 5mm Installation screws x 2; Washer x 2; Nut x 2; Anti-static stylus brush; PCOCC Lead wires set x 1 |
