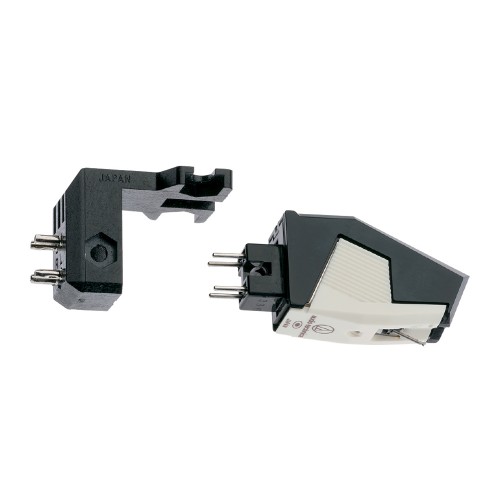

audio-technica AT311EP
MOVING MAGNET CARTRIDGE
0.4 x 0.7 mil elliptical stylus
Alloy tube cantilever
Universal adaptor and installation screw and nut supplied
Bonded round shank diamond
AT311EP
MOVING MAGNET CARTRIDGE
Elliptical stylus P-mount moving magnet cartridges with universal 1/2” adaptor
The AT311EP allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.
Designed specifically for the linear format, the AT311EP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation. Special Alnico magnets are employed for a natural and uncoloured sonic performance.
The AT311EP includes a universal mounting kit (P20020 adaptor P-mount to ½”) for use with other tonearms.
| Type | Dual Magnet |
| Mounting | P-mount & 1/2” mount |
| Frequency Response | 15 - 27,000 Hz |
| Channel Separation | 29 dB / 18 dB (1 kHz/10 kHz) |
| Output Channel Balance | 1.25 dB (1 kHz) |
| Output Voltage | 3.5 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force Range | 1.0 to 1.5g (1.25g recommended) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 07 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Alloy Tube |
| Coil Inductance | 400 mH (1 kHz) |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN3472SE |
| Accessories Included | P-mount black installation screw and nut; plastic protector; Universal 1/2” mount adaptor |
