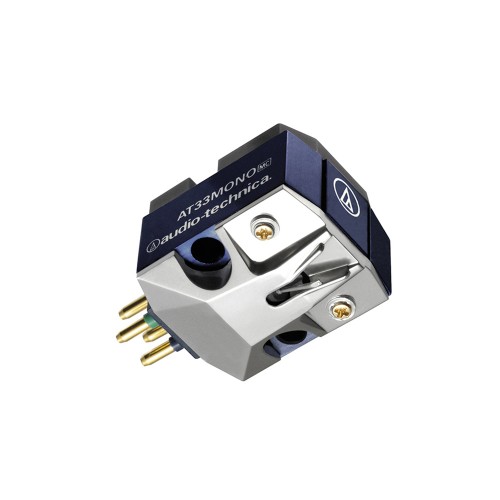

audio-technica AT33MONO
MOVING COIL CARTRIDGE
Mono cartridge compatible with stereo playback systems.
Elliptical stylus chip and hard duralumin cantilever
10? middle impedance specification
PCOCC coil prevents crystal gain boundary formation
Strong body stabilized by a rigid body set-up
"Hanenite" anti-vibration rubber eliminates unnecessary vibrations
AT33MONO
MOVING COIL CARTRIDGE
The AT33MONO is made specifically for use on mono systems. It has a horizontal coil, and so in principle only generates electricity horizontally.
The AT33MONO produces sound to a very high quality because it does not easily pick up unnecessary strain components from distorted or scratched records, producing audio that you couldn't possibly get from a stereo cartridge.
The AT33MONO also has appropriate compliance in the vertical direction, so will not cause damage to stereo records. Enjoy those well-known classic mono records of yesteryear with the AT33MONO.
- Mono cartridge compatible with stereo playback systems.
- Elliptical stylus chip and hard duralumin cantilever.
- 10O middle impedance specification.
- PCOCC coil prevents crystal gain boundary formation (in transmission direction).
- Strong body stabilized by a rigid body set-up.
- "Hanenite" anti-vibration rubber eliminates unnecessary vibrations.
- High-quality sound / Brass fastening screw.
*This model is not compatible with SP records.
“A TRUE MONO CARTRIDGE”
The AT33MONO cartridge only generates electrical signal with horizontal movement due to the horizontal configuration of the coil.
“ELIMINATES UNNECESSARY VIBRATION”
‘Hanenite’ anti-vibration high-damping rubber eliminates unnecessary vibration.
Internal wiring on AT33MONO featuring two horizontal voice coils, each voice coil terminations available independently.
| Type | MC-type |
| Mounting | 1/2" Centers |
| Frequency Response | 20 - 20,000Hz |
| Body Material | Aluminium/Synthetic Resin |
| Channel Separation | 30dB (1kHz) |
| Output Channel Balance | 1.0dB (1kHz) |
| Output Voltage | 0.35mV (1kHz and 5cm/sec. horizontal signal) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 2.3 - 2.7g (2.5g standard) |
| Stylus Shape | Conical |
| Stylus Size | 0.65 mil |
| Cantilever | Duralumin pipe |
| Coil Impedance | 10Ω (1kHz) |
| Coil Inductance | 28µH (1kHz) |
| DC Resistance | 10Ω |
| Static Compliance | 20×10-6cm/dyne |
| Dynamic Compliance | 6×10-6cm/dyne (100Hz) |
| Recommended Load Impedance | More than 100Ω (when head amp connected) |
| Weight | 6.9g |
| Dimensions | H16×W16.6×D26.5mm |
| Replacement Stylus | When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price. |
| Accessories Included | Non-magnetic screwdriver x1, Washers x2, Protector x1, Cartridge fastening screw 13mm×2, 19mm×2, Nut x2, Brush x1, PCOCC lead set x1 |
