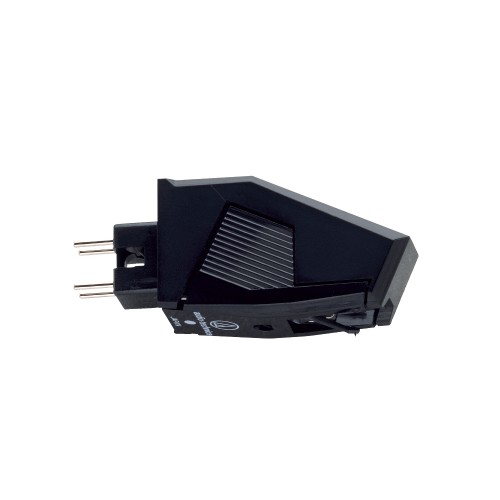

audio-technica AT3482P
MOVING MAGNET CARTRIDGE
0.6 mil conical stylus
Carbon fiber cantilever
Installation screw and nut supplied
Bonded round shank diamond
AT3482P
MOVING MAGNET CARTRIDGE
Conical stylus P-mount only moving magnet cartridge
The AT3482P allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.
Designed specifically for the linear format, the AT3482P features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation. Special Alnico magnets are employed for a natural and uncoloured sonic performance.
| Type | Dual Magnet |
| Mounting | P-mount only |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 24 dB / 15 dB (1 kHz/10 kHz) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 5.0 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force Range | 1.0 to 1.5g (1.25g recommended) |
| Stylus Shape | Conical |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Carbon Fiber |
| Coil Inductance | 400 mH (1 kHz) |
| Recommended Load Impedance | 47,000 ohms |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN3472P (aluminium cantilever) |
| Accessories Included | P-mount black installation screw and nut; plastic protector; |
