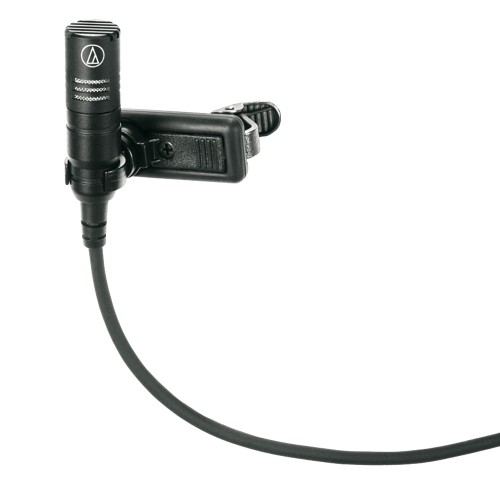

audio-technica ES943C
CARDIOID CONDENSER LAVALIER MICROPHONE
Designed for quality sound reinforcement, professional recording and TV
Small size and excellent response provide crisp, full-sounding voice pickup
Available interchangeable elements permit angle of acceptance 100º to 360°
1.4 m permanently attached miniature cable connects to AT8538 power module
UniGuard® RFI-shielding technology offers outstanding rejection of RFI
Requires 11V to 52V DC phantom power
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 30 - 20,000 Hz |
| Open Circuit Sensitivity | -40 dB (10.0 mV) re 1V at 1 Pa |
| Impedance | 250 ohms |
| Maximum Input Sound Level | 138 dB SPL, 1 kHz at 1% T.H.D. |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Switches | Flat, roll-off |
| Dynamic Range | 109 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Cable | 1.4 m (55") long (permanently attached to microphone), 2.2 mm (0.09") diameter, 2-conductor shielded cable, terminated with TA3F-type connector |
| Accessories Included | AT8110 foam windscreen; AT8460 clothing clip; AT8538 power module; belt clip |
