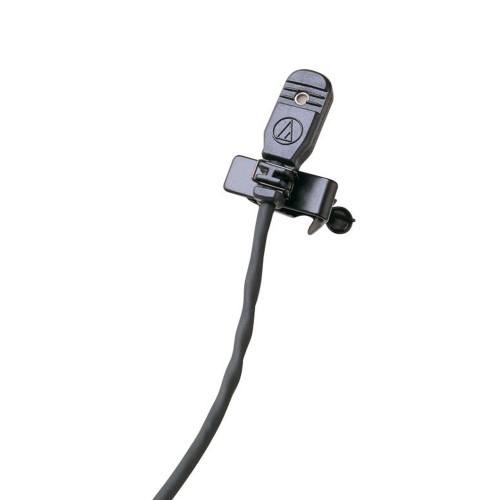

audio-technica MT830R
OMNIDIRECTIONAL CONDENSER LAVALIER MICROPHONE
Small size provides excellent yet unobtrusive sound pickup
High intelligibility for lecturers, stage/TV performers and singers
Wide-range capability ensures clean, accurate reproduction
7.6 m cable permanently attached to mic, TA3F connector at power module
Operates with phantom power only
MT830R
OMNIDIRECTIONAL CONDENSER LAVALIER MICROPHONE
Designed to be worn as a lavalier or hidden in loose clothing or in the hair, the MT830R provides high intelligibility for lecturers, stage/TV performers and singers. The mic's wide-range capability ensures clean, accurate reproduction. It operates on phantom power only.
- Small size provides excellent yet unobtrusive sound pickup
- High intelligibility for lecturers, stage/TV performers and singers
- Wide-range capability ensures clean, accurate reproduction
- 25' (7.6 m) cable permanently attached to mic, TA3F connector at power module
- Also available as: MT830c - less power module; 55" (1.4 m) cable, unterminated
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 30 - 20,000 Hz |
| Open Circuit Sensitivity | -37 dB (14.1 mV) re 1V at 1 Pa |
| Impedance | 200 ohms |
| Maximum Input Sound Level | 135 dB SPL, 1 kHz at 1% T.H.D. |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Switches | Flat, roll-off |
| Dynamic Range | 108 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 67 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Weight | Microphone : 1.3 g (0.05 oz) - Power Module : 81 g (2.9 oz) |
| Dimensions | Microphone: 15.8 mm (0.62") long, 8.3 mm (0.33") wide, 5.0 mm (0.19") thick - Power Module: 92.9 mm (3.66") long, 18.9 mm (0.74") diameter |
| Output Connector | Integral 3-pin XLRM-type (on Power Module) |
| Cable | 7.6 m (25') long (permanently attached to microphone), 2.5 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type output connector |
| Accessories Included | AT8538 power module; AT8420 clothing clip; AT8130 windscreens |
