audio-technica ATW-11/PF

AT-ONE BELTPACK SYSTEM WITH ATR35CW

Simple to set up and use
2 x 4 channel frequency plan for enhanced flexibility
Rack mountable for easy installation
Intuitive receiver and transmitter controls
ATR35cW omnidirectional condenser lavalier microphone
Up to 10 hours battery life

ATW-11/PF

THE AT-ONE ENTRY LEVEL UHF SYSTEM, THE BEST EQUIPPED ON THE MARKET

Introducing AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.

AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.

Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-11/PF comes equipped with the ATR35cW tie-clip microphone.

  • Designed for quick and easy use
  • Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
  • The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
  • Users can choose up to 4 channels in a group

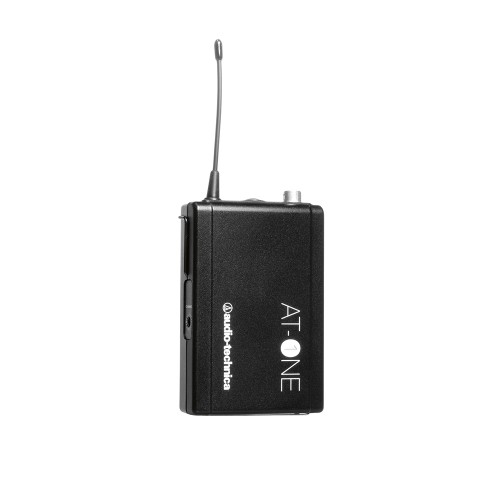

  • The ATW-11F system is equipped with a discreet and robust pocket transmitter
  • RF Transmitting power 10mW
  • Comes with an ATR35cW miniature omnidirectional condenser microphone
  • Up to 10 hours' battery life with 2 x 1.5V AA batteries
  • RF Indicator light
  • Robust construction from high quality components
  • Delivered in a transport case with a rack mount kit and detachable antennas


“2 X 4 CHANNELS”

AT-One's frequency plan is divided into two groups, each with 4 channels available, one in the range of authorized European frequencies and the other in the duplex gap. Users can choose up to 4 channels in a group.

“RF LIGHT INDICATOR”

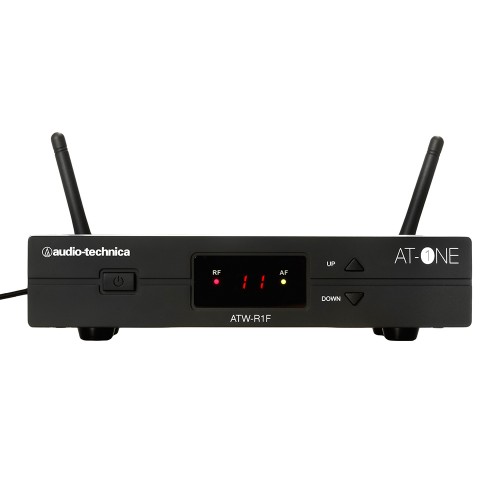

The display on the half-rack receiver clearly indicates both the RF and AF levels.

“12V POWER”

The ATW-R1F receiver delivers a voltage of 12V / 100 mA for powering an ATW-B80 booster antenna, active splitters, an antenna combiner or any other active component.




DELIVERED IN A CASE

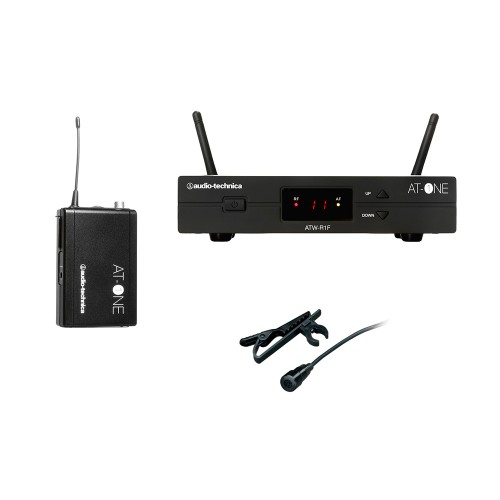

The AT-One comes with an ATW-R1F receiver, an ATW-T1F pocket transmitter, detachable antennas, a rack-mount kit, and a power supply, all in a hard carrying case.

EASY TO USE

The AT-One has been conceived and designed for quick and easy use. Simply open the carrying case, connect, and your UHF wireless system is immediately operational.

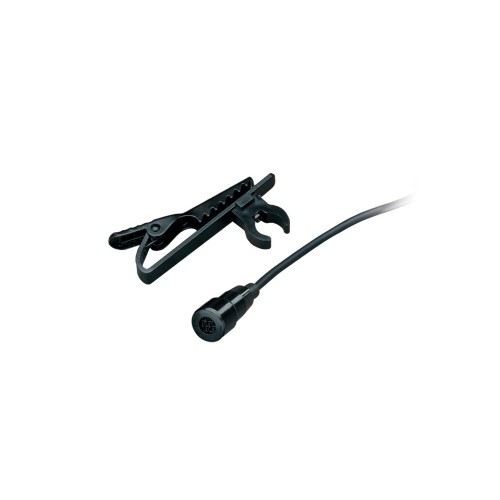

MICRO-OMNI LAVALIER MIC

The AT-One AT-11/PF system comes with an ATR35cW omnidirectional lavalier microphone, to provide precise and intelligible speech quality.

REMOVABLE ANTENNAE

The antennae of the AT-One wireless system are detachable, which alternatively allows remote operation via a single BNC cable.

ATW-11/PF
Overall System
Operating Frequencies 24 - 831 MHz, 863 - 865 MHz
Number Of Channels 2 x 4 frequencies
Frequency Stability +/- 0.005%, Phase lock loop frequency control
Modulation Mode FM
Frequency Response 60 Hz - 16 kHz
Operating Range 60m, typical
Receiver
Receiving System Antenna switching diversity
Image Rejection 55dB minimum
Dynamic Range HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity 10dBµV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion <1% - 20 kHz deviation @ 1 kHz
Audio Output Unbalanced -2dBV
Audio Output Balanced 4dBV
Output Connectors (Microphone) Balanced: XLRM-type
Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
Maximum Output Level Mic / Line (0 / -20dB)
Antenna Input BNC type, 50 - BIAS voltage 12V DC 100mA each
Dimensions 200 mm x 42 mm x 122 mm (W x H x D)
Weight 418 g without accessories
Accessories Included AC Adapter, Antennas, Rack mount adapter, protective carrying case
Belt Pack
RF Power Output 10 mW
Spurious Emissions Following national regulations
Input Connections Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V
Battery Type Two 1.5V AA alkaline (not included)
Battery Life 10 hours - depending on battery type and use pattern
Dimensions 66 mm x 98 mm x 22 mm (W x H x D)
