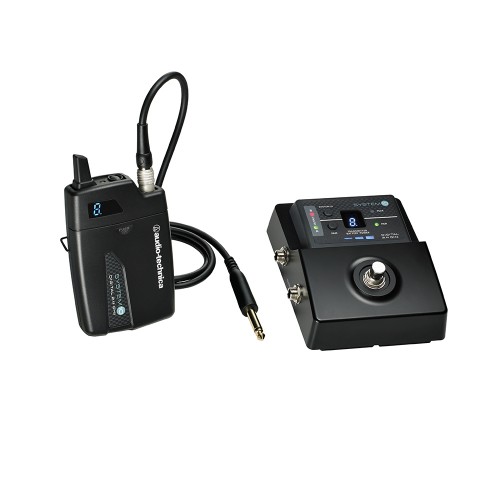

audio-technica ATW-1501

SYSTEM 10 STOMPBOX - GUITAR WIRELESS SYSTEM

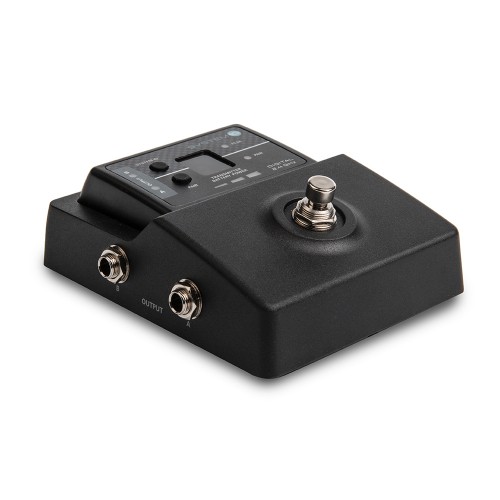

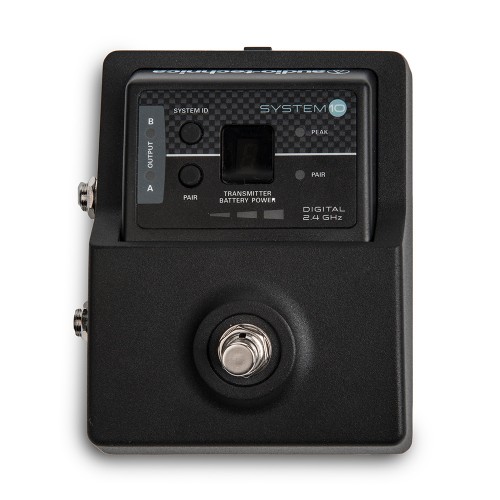

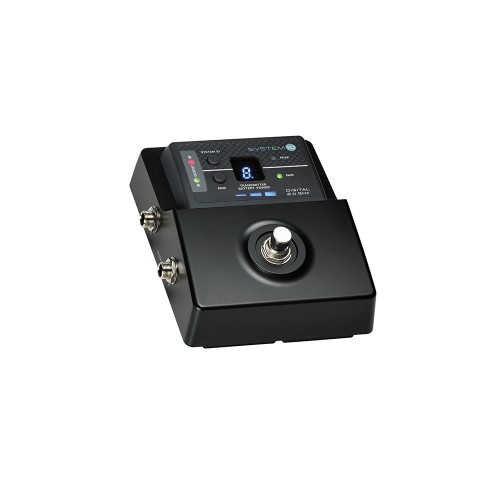

ATW-R1500 Stompbox receiver

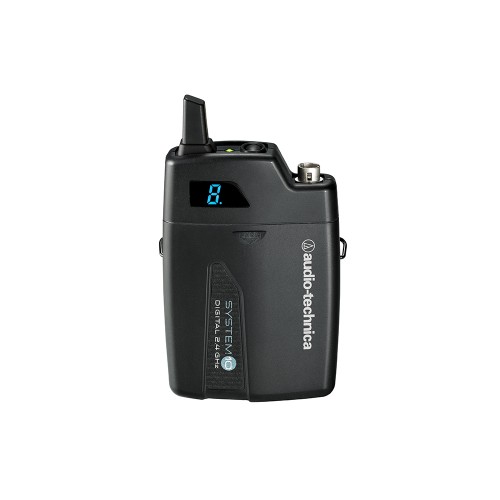

ATW-T1001 UniPak body-pack transmitter
AT-GcW guitar cable
2.4 GHz range – licence and interference free
A-B Outputs for multiple rigs or muted tuning
Can be paired to up to 8 body-packs for multiple guitars

AT5040

SYSTEM 10 STOMPBOX

UNIQUE FUNCTIONALITY FOR GUITARISTS, BASSISTS AND INSTRUMENTALISTS

The innovative digital wireless guitar system from Audio-Technica that fits right on your pedal board. Pair up to 8 guitars with separate body pack transmitters for easy on stage changeovers, and either mute, tune or use a second rig with the A-B switching. All presented in a sturdy metal casing.

  • Audio-Technica’s innovative digital wireless guitar system
  • 2.4 GHz range – licence free and far from TV and DTV interference
  • Stompbox design to fit comfortably on a pedalboard
  • 9v or 12v negative or positive power to match pedal board power supplies
  • A-B box to toggle outputs or mute for tuning
  • Pair up to 8 guitars to one receiver with separate bodypack receivers
  • Ideal for guitar, bass or any other jack input instruments
  • Complete system with bodypack transmitter, stompbox receiver, guitar cable and power supply


“INNOVATIVE MULTIPLE INSTRUMENT CAPABILITY”

The Stompbox can be paired to up to 8 bodypack transmitters, making it perfect for multi-instrumentalists. Simply turn off one transmitter, turn on the next pre-paired one, and it will automatically connect. This feature is ideal for guitarists or bassists using multiple instruments, making it quick and easy to change to a guitar with a different tuning or set-up, without having to unplug.

“COMPACT AND HARD WEARING”

The Stompbox has been designed with practicality in mind. Presented in a compact stompbox design, the receiver sits comfortably on your pedal board with no need for additional cabling or protruding aerials. With a rugged build quality, the all metal chassis and durable metal footswitch will withstand life on tour.

“CRYSTAL CLEAR SOUND QUALITY”

Operating on the 2.4Ghz ISM band, this system is interferance free and licence free, avoiding interference from TV, DTV and Radio signals. The system offers cyrstal clear digital wireless sound, bypassing any of the sound quality or build quality issues of using long cables.



A-B SWITCHING

A-B channels allow either  a mute switch, or a muted tuning loop, or separate pedal or amp rig.

VERSATILE POWER INPUT

The power input can take 9v or 12v, as well as negative or positive tip, making it match most pedal board power supplies

RUGGED METAL CHASSIS

The all metal chassis and footswitch are durable and hard wearing, making it perfect for life on the road.

COMPACT BODYPACK

The lightweight bodypack and cable clips straight onto your guitar strap, keeping it discreet and allowing movement.

ATW-1501
Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 18.3 m (60') radius, 36.6 m (120') diameter typical. Open range environment with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 1/4" (6.3 mm), TRS balanced: +12 dBV
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Dimensions 101 mm (3.98") W x 44 mm (1.73") H x 130 mm (5.12") D
Weight 565g
Accessories Included Power supply, hook & loop fastener x2
Belt Pack
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector
Pin 1: GND,
Pin 2: INST INPUT,
Pin 3: MIC INPUT,
Pin 4: DC BIAS +9V
Battery Type Two 1.5V AA not included
Battery Life >7 hours (alkaline) Depending on battery type and use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100g
