artemis Cine Brodcast

The new artemis Cine Broadcast is the next logic step after the artemis Cine HD Pro.

Again we added more functionality and more features to provide you with the best tool and the best work-flow.
Beside the traditional functions of the artemis HD systems, like High-Capacity-Wiring and the Hot-Swap-Technology,
now we added 3 video lines, a new battery volt meter, a D-Tab power and an USB power out 3 high quality video lines,
give you so much more possibilities and more back up if needed.

The redesigned sled now offers a new volt meter, which is placed at the top of the sled.
The new volt meter informs you much better about the actual conditions of your batteries.

We removed all „not needed anymore“ functions of the old days and replaced them with more video and electric power capacity
and of course we added an USB socket, to power your mobile phone, when it is used as a second monitor.

Having an USB power gives you so much more flexibility.
And even more selection of accessories allows the new D-Tab power out socket at the backside of the sled.

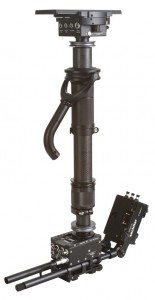

The Cine Broadcast comes with the 1.8" post and the 1.8" gimbal.

??Video:
The new artemis Cine Broadcast featuring “Dual Video Processing”, which allows simultaneously use of  HD SDI and SD video signals. ??

Power:
The Cine Broadcast come with High-Capacity-Wiring and the well known Hot-Swap-Technology.
Thus, during a battery change electrical power is supplied continuously and there is no need to shut down the camera, monitor and radio channels.?

Because of the High-Capacity-Wiring the artemis Cine Broadcast, which was first used in  artemis EFP HD 2009, the Cine Broadcast can provide more than 200 watt for the camera. It is, therefore, also capable to supply modern HD digital cameras with optimal power. ?The HiCap wiring it is great for 3D productions too.??

The HiCap wiring not only keeps the power loss extremely low (voltage drop) but, in combination with the Hot-Swap technology, also allows for a longer operating time of the battery. Thus, depending on the type of battery used, the operating time can be doubled.??

Tally:?
The Cine HD Pro is prepared for the use of the new ACT2 Tall system ?(code S26003-1820), that can be used with all camera types. ?
So artemis systems are easy to integrate into studio and OB van routines.??

Modular design:?
With the quick-release mechanism, which also functions as docking ring, you can easily remove or detach the side-to-side and the sled module from the post. With this feature, you can simply flip the gimbal over for low-mode operations in no time and you can use a super post. And you can easily upgrade your systems with new modules later. The modular design makes service quick and simple: We provide you with a replacement module while we service your module in our workshop. So you don’t have any downtime.??

Separated power circuits:?
The internal wiring of the systems has separated circuits for the camera and its consumers as well as for the monitor and its consumers. This decreases signal noise and supports to monitor power consumption of the single components.??

Since 2001 the Cine HD system is the right choice for all professional film and HD movie cinematography applications. Because this was the first camera stabilizer system offering HD capacity.?Both the artemis Cine HD Pro and the EFP HD feature fully modular set-ups that give users the flexibility they need to operate a variety of film and video cameras and accessories with ease.

??The Cine Broadcast provides:
12V / 24V,  High Capacity Wiring
Hot-Swap-Technology
2 x 3G HD SDI, 1 x SD (HD) Video
USB Power Out
D-Tap Power Out
Video-Power Out
Focus Power Out
Aux Power Out
Tally System
Patented Dual-Dynamic-Balance
C-Battery

The system will come with the 8“ camera dovetail plate, post tool and hex keys.
