sachtler artemis EFP HD

Perfect for Broadcast work and Digital Cinematography / 3G HD SDI / 12V / HotSwap

artemis EFP HD

The artemis EFP HD is made to support today‘s digital cinematography and the work with actual HD Broadcast cameras, in the most  professional way ever.
The artemis EFP HD offers a 12V high capacity power wiring inside the rig, which enables capacities for the camera up to 15 Amp.

Because of the HiCap wiring, the artemis EFP HD got lowest voltage drop ever.
The build in Hot Swap technology by Anton Bauer helps to avoid rebooting the RED One, if the batteries are low.
HD SDI video processing up to 4.5 GHz.
As all artemis systems, also this system, got a gimbal with tool-free clamp and a lower sled which allows free positioning of the battery mounts
Thanks to the patented Dual Dyna,ic Balance, it does not matter what kind camera is used, the artemis EFP HD will be perfectly balanced.

Modular Design:
Because of the artemis modular design, is is possible to combine the top stage and the lower sled of the EFP HD with the 1.5“ Post and Gimbal, or with the new 1.8“ ACT2 Post and the 1.8“ ACT2 Gimbal.

The artemis EFP HD top stage handles HD SDI up to 4.5 GHz and SD video signals

Hot Swap:
Since 2009 the Hot-Swap Technology, is a standard feature of the artemis EFP HD systems.
Thus, during a battery change electrical power is supplied continuously and there is no need to shut down the camera, monitor and radio channels.

Because of the HiCap wiring the artemis EFP HD can provide more than 200 watt for the camera. It is, therefore, also capable to supply modern HD digital cameras with optimal power. The HiCap wiring is great for 3D productions too.

The EFP HD is prepared for the use of the new ACT2 Tall system (code S26003-1820), that can be used with all camera types.
So artemis systems are easy to integrate into studio and OB van routines.

Detachable Modules:
With the quick-release mechanism, which also functions as docking ring, you can easily remove or detach the side-to-side and the sled module from the post. With this feature, you can simply flip the gimbal over for low-mode operations in no time and you can use a super post. And you can easily upgrade your systems with new modules later. The modular design makes service quick and simple: We provide you with a replacement module while we service your module in our workshop. So you don’t have any downtime.

The EFP HD system includes:
8“ camera dovetail plate, hex keys and the post tool.

Compare the artemis systems here:

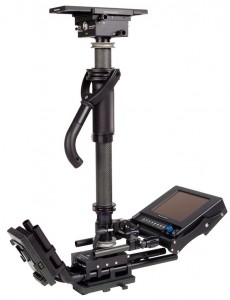

The displayed Monitor Bracket is not a part of the system, the monitor bracket have to be ordered separately.
Also the docking bracket have to be ordered separately.
Monitor and batteries are NOT included!
