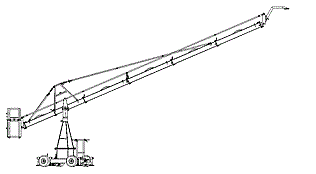

MovieTech Remote 400-R4
With only two different bracing and parallelogram bars as well as corresponding crane-arm segments with a length of 1 m and 1.5 m, the MT crane system is the compelling choice due to its extremely short set-up times. Thanks to its intelligent connection system, the "push pins" which were forever being lost at the filming location are now a thing of the past.
The MT 400 is entitled to bear the BG-PRÜFZERT badge.
|Rear boom||1 m||1, 5m|
|Required boom, front||4 x 1,5 m||4 x 1,5 m|
|Strut bars / parallelogram bars||Front||10 x 1,5 m||10 x 1,5 m|
|Rear||3 x 1 m||3 x 1,5 m|
|Total travel||11,08 m||11,08 m|
|Maximum height||Without column extension||7,5 m||6,18 m|
|With column extension||7,83 m||7,54 m|
|Counterweight without payload||160 kg||104 kg|
|Payload||80 kg||80 kg|
|Counterweight with payload||544 kg||400 kg|
|Boom length||Front (reception flange)||7,57 m||7,57 m|
|Rear (outer edge of basket)||1,97 m||2,45 m|
|Own weight without payload and counterweights||307 kg||333,5 kg|
