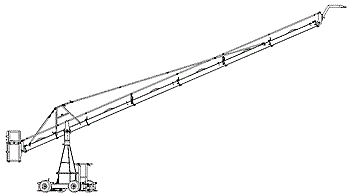

MovieTech Remote 400-R5
With only two different bracing and parallelogram bars as well as corresponding crane-arm segments with a length of 1 m and 1.5 m, the MT crane system is the compelling choice due to its extremely short set-up times. Thanks to its intelligent connection system, the "push pins" which were forever being lost at the filming location are now a thing of the past.
The MT 400 is entitled to bear the BG-PRÜFZERT badge.
|Rear boom||1 m||1, 5m|
|Required boom, front||5 x 1,5 m||4 x 1,5 m+1 x 1m|
|Strut bars / parallelogram bars||Front||13 x 1,5 m||12 x 1,5 m+1 x 1m|
|Rear||3 x 1 m||3 x 1,5 m|
|Total travel||13,54 m||13,54 m|
|Maximum height||Without column extension||8,49 m||7,12 m|
|With column extension||8,82 m||8,7 m|
|Counterweight without payload||260 kg||156 kg|
|Payload||65 kg||65 kg|
|Counterweight with payload||632 kg||424 kg|
|Boom length||Front (reception flange)||9,9 m||9,9 m|
|Rear (outer edge of basket)||1,97 m||2,45 m|
|Own weight without payload and counterweights||323,6 kg||350,1 kg|
