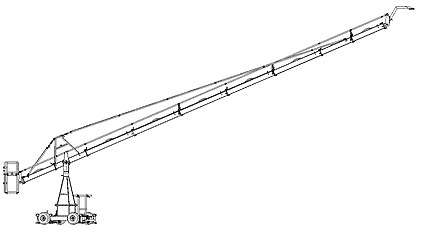

MovieTech Remote 400-R7
With only two different bracing and parallelogram bars as well as corresponding crane-arm segments with a length of 1 m and 1.5 m, the MT crane system is the compelling choice due to its extremely short set-up times. Thanks to its intelligent connection system, the "push pins" which were forever being lost at the filming location are now a thing of the past.
The MT 400 is entitled to bear the BG-PRÜFZERT badge.
|Rear boom||1 m||1, 5m|
|Required boom, front||5 x 1,5 m+2 x 1m||4 x 1,5 m+3 x 1m|
|Strut bars / parallelogram bars||Front||15 x 1,5 m+4 x 1m||12 x 1,5 m+7 x 1m|
|Rear||3 x 1 m||3 x 1,5 m|
|Total travel||16,84 m||16,84 m|
|Maximum height||Without column extension||10,38 m||8,38 m|
|With column extension||10,72 m||10,27 m|
|Counterweight without payload||432 kg||276 kg|
|Payload||45 kg||65 kg|
|Counterweight with payload||760 kg||592 kg|
|Boom length||Front (reception flange)||11,13 m||10,64 m|
|Rear (outer edge of basket)||1,97 m||2,45 m|
|Own weight without payload and counterweights||344,4 kg||367,4 kg|
