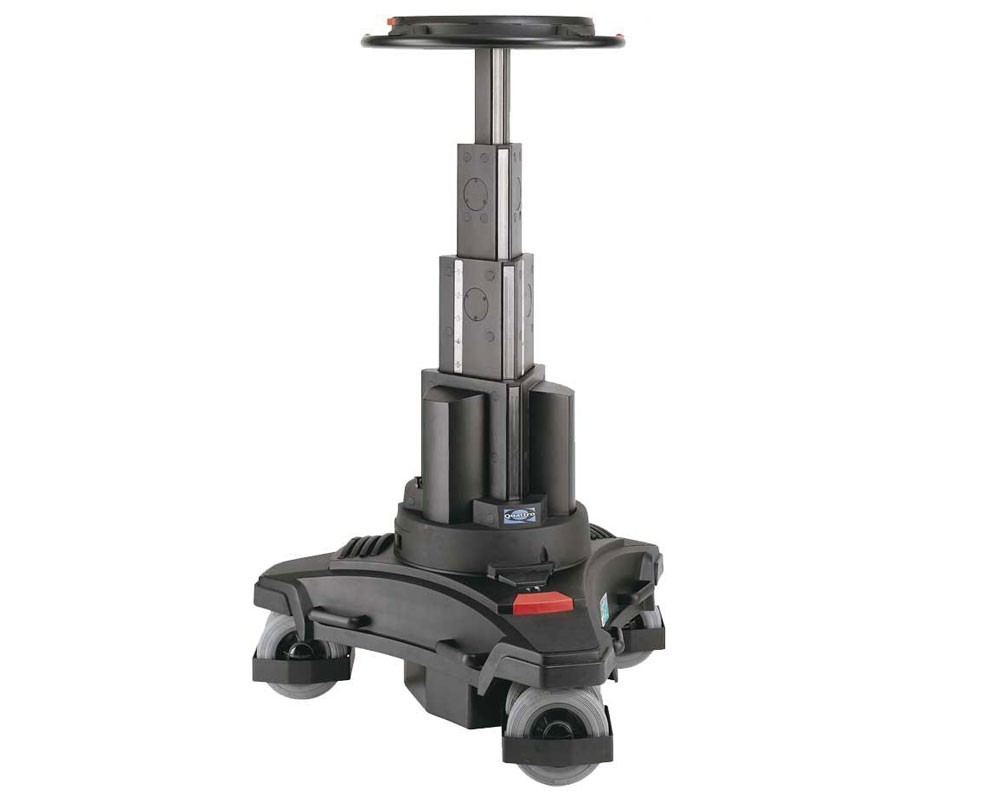

Vinten (V4002-0002) Quattro-OBL Pedestal

Professional Pedestal for Studio and OB Applications. Quattro-OBL Pedestal. (Mfr # V4002-0002)

The Quattro is a unique and innovative four-stage pedestal with an extensive range of benefits for today's camera operator.

The Quattro-OBL outside broadcast pedestal provides ground clearance of 5 cm but still allows the opportunity to achieve lower angle shots, as well as an impressive on-shot stroke of 100 cm / 39.4".

A revolutionary pneumatic design ensures that the Quattro pedestals provide Perfect Balance throughout their four-stages of elevation, ensuring that they offer the exact support required for the camera operator to raise and lower the camera with minimal effort.

• Innovative low volume and low pressure pneumatics
• Perfect Balance provides fingertip control and reduces operator fatigue
• Excellent height range allows greater shot creativity
• Stylish ergonomic design offers easy access to controls

Specifications:
• Max. Capacity: 105 kg / 231.5 lbs [max. capacity includes trim weights]
• Height Range: 50.8 to 150.8 cm / 20 to 59.4"
• Weight: 116 kg / 255.8 lbs
• On-Shot Stroke: 100 cm / 39.4"
• Tracking Width: 98 cm / 38.5"
• Transit Width: 87 cm / 38.5"
• Wheel Diameter: 20 cm / 7.8"
• Detachable Steering Ring Diameter: 59 cm / 23.2"
• Trim Weights: 7.5 kg / 16.5 lbs
• Ground Clearance: 5 cm / 2"
• Colour: Black





--



Standard Manufacturer's Warranty
