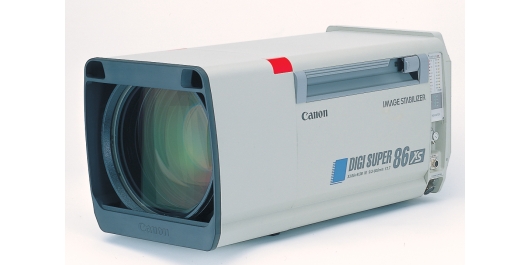

Canon DIGISUPER 86 II TELE xs
Ultra Telephoto Field Lens with advanced Image Stabilizer
A long telephoto HDTV field lens the DIGISUPER 86 II TELE xs features powerful optical, mechanical and digital technologies, including an advanced Image Stabilizer, to deliver superb quality images.
- Telephoto lens
- Power optics
- Internal focus
- Advanced Image Stabilizer
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
| Zoom Ratio | 86x |
|---|---|
| Image size | 2/3'' |
| Build-in Extender | 2.0x |
| Focal Length Range | 13.5~1161mm |
| Focal Length Range (with extender) | 27~2322mm |
| Maximum Relative Aperture (F-Number) | 1:2.4 at 13.5mm~480mm 1:5.8 at 1161mm (Ramping Characteristic) |
| Max. Relative Aperture (F-number) w/ext. | 1:4.8 at 27mm~960mm 1:11.6 at 2322mm (Ramping Characterstic) |
| Angular Field of View | 39.1° (H) x 22.6° (V) at 13.5mm 0.47° (H) x 0.27° (V) at 1161mm |
| Angular Field of View with Extender | 20.2° (H) x 11.4° (V) at 27mm 0.24° (H) x 0.13° (V) at 2322mm |
| MOD From Front of Lens | 3.0 Meters |
| Scene Object Dimensions at MOD | 198.2cm x111.5 cm at 13.5mm 2.3 cm x 1.3 cm at 1161mm |
| Scene Obj. Dim at MOD w/ ext | 99.1 cm x 55.7 cm at 27mm 1.2 cm x 0.7 cm at 2322mm |
| Protection Filter | Standard |
| Build-in Optical Image Stabilizer | Yes |
| Crossover Type | Option |
--
