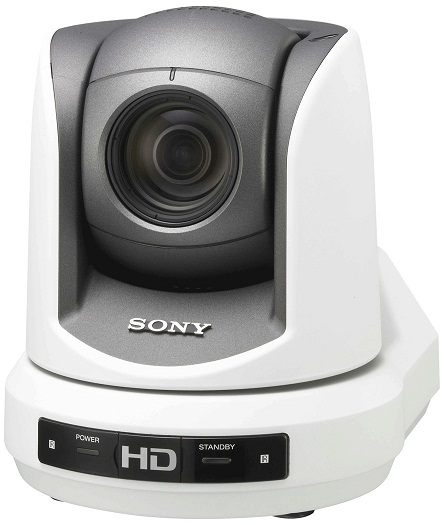

Sony BRC-Z330

SD/HD CMOS Remote Camera

The BRC-Z330 has been designed to meet growing demand for full HD images from robotic camera. It is equipped with a relatively low-power-consumption 1/3-type 2-megapixel CMOS image sensor. The camera's wide pan/tilt ranges and smooth pan/tilt/zoom capability make it perfect for deployment in locations such as auditoriums, educational facilities, conferences and concerts.

The BRC-Z330 is the smallest model in the Series line up. Its compact and light body makes installation and operation very smooth. Moreover, thanks to the adoption of a direct-drive pan/tilt mechanism, it has a quiet operation that minimizes interference with ongoing events and helps it blend in naturally with surrounding environments.

  • Affordable HD CMOS P/T/Z Camera
  • Compact Size and Silent Mechanism
  • 18x Optical Zoom (72x With Digital Zoom)

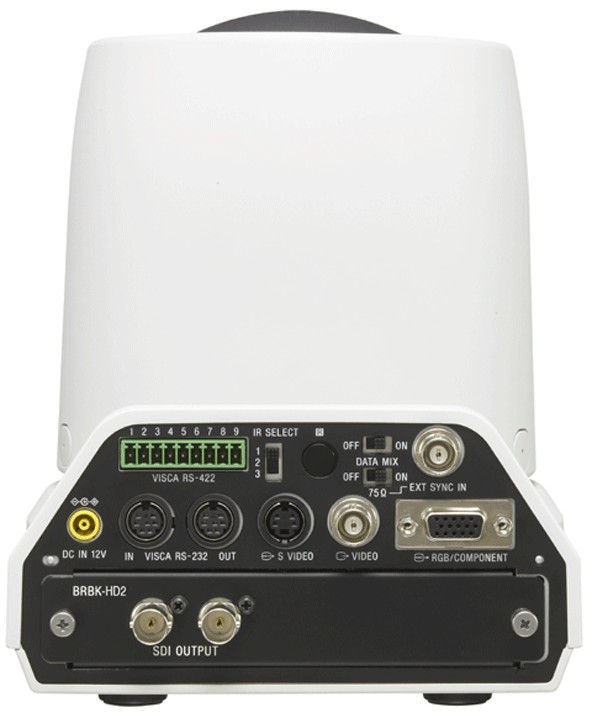

  • 1080i, 720p, and SD Output
  • Optical Card Slot
  • External Synchronization Function
  • VISCA Control (RS-232C/RS-422)


Benefits:

  • Excellent Picture Quality
  • Flexible Installation - Ceiling Mount or Flat Surface
  • Easy-to-use and Ergonomically Designed Remote Control Unit
  • High Performance Pan/Tilt/Zoom Mechanism
MIN. ILLUMINATION 6 lx (50 IRE, F1.6, +24 dB)
WEIGHT 1.9 kg (4 oz)
DIMENSIONS (WXHXD) 160.8 x 193.4 x 186 mm
FOCAL LENGTH f-4.6 to 82.8 mm (F1.6 to F2.2)
POWER CONSUMPTION Max 18 W
POWER REQUIREMENT DC 10.8 to 13.2 V
SIGNAL-TO-NOISE RATIO 50 dB
PIXEL RESOLUTION Approx. 2 Megapixels
SENSOR SIZE 1/3-
SENSOR TYPE CMOS
RECORDING FRAME RATE 1080/59.94i, 1080/50i, 720/59.94P, 720/50P

Standard Manufacturer's Warranty
