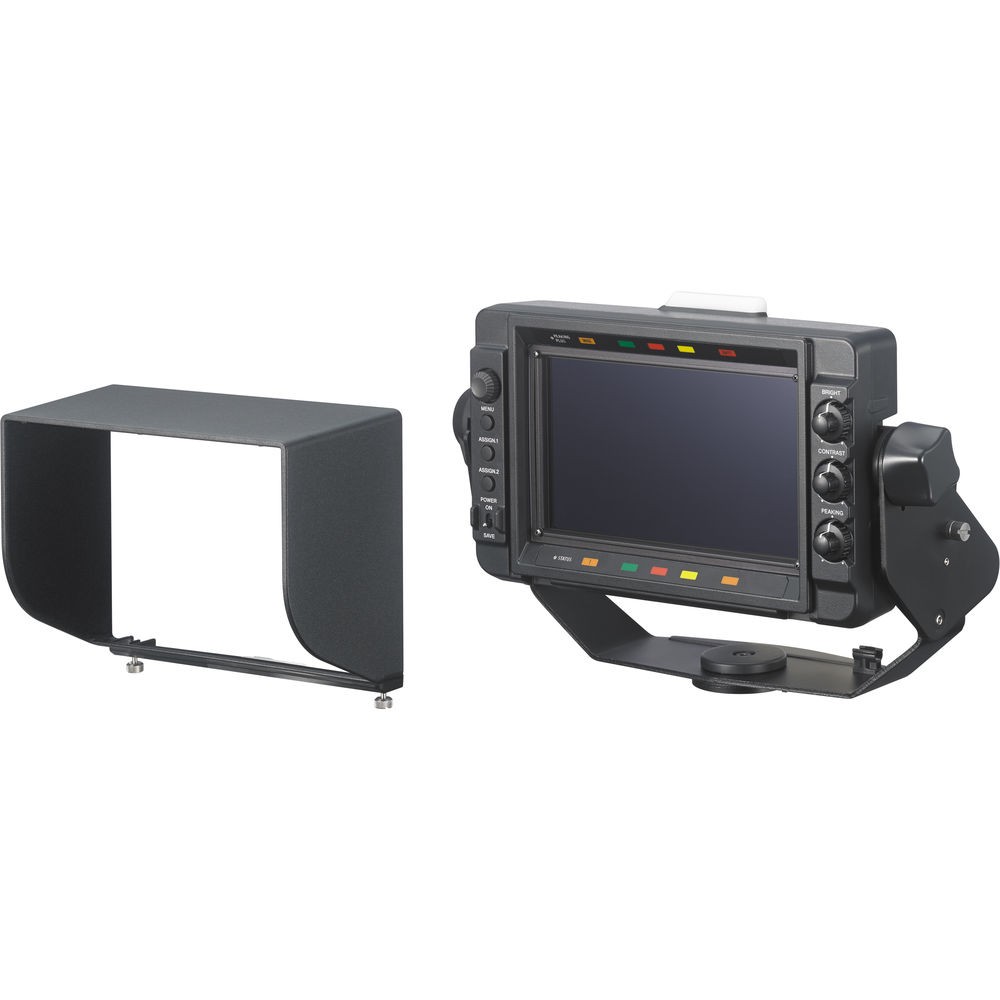

Sony HDVF-L750 LCD HD Viewfinder
HDVF-L750 7" LCD HD Viewfinder. (Mfr # HDVF-L750)
The Sony HDVF-L750 7" LCD HD is a 1920 x 1080 viewfinder. It uses simple type VF Pan/Tilt mechanism and can be mounted by selecting VF cable mounting bracket (V-shoe or included converter mounting plate) on the HDC/HSC series studio cameras, F55/CA4000, HXC-D70, PDW-850, and PMW-500, 400, 350, 320.
Key Features:
- Full HD 1920 x 1080 7" LCD viewfinder
- Focus Assist function
- Assignable switch
- Pan/Tilt mechanism similar to HDVF-C550W
- 3G-SDI input
- WFM waveform function
- 1000:1 Contrast ratio
| ASPECT RATIO | 16:9 |
|---|---|
| WEIGHT | 3.7 lb (1.7 kg) |
| BRIGHTNESS | 300 cd/m2 (typical) |
| COLOR TEMPERATURE | D65 |
| STORAGE TEMPERATURE | -4 to 140°F (-20 to 60°C) |
| OPERATING TEMPERATURE | 32 to 113°F (0 to 45°C) |
| POWER SUPPLY | 10.5 - 17.0 VDC |
| DIMENSIONS | 11.6 x 8.3 x 5.8" (29.5 x 21.2 x 14.7 cm) |
| POWER CONSUMPTION | 13 W |
| RESOLUTION | 1920 x 1080 |
| DISPLAY AREA | 6.1 x 3.4" (15.6 x 8.8 cm) |
| SUPPORTED FORMATS | Video Formats: 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p |
