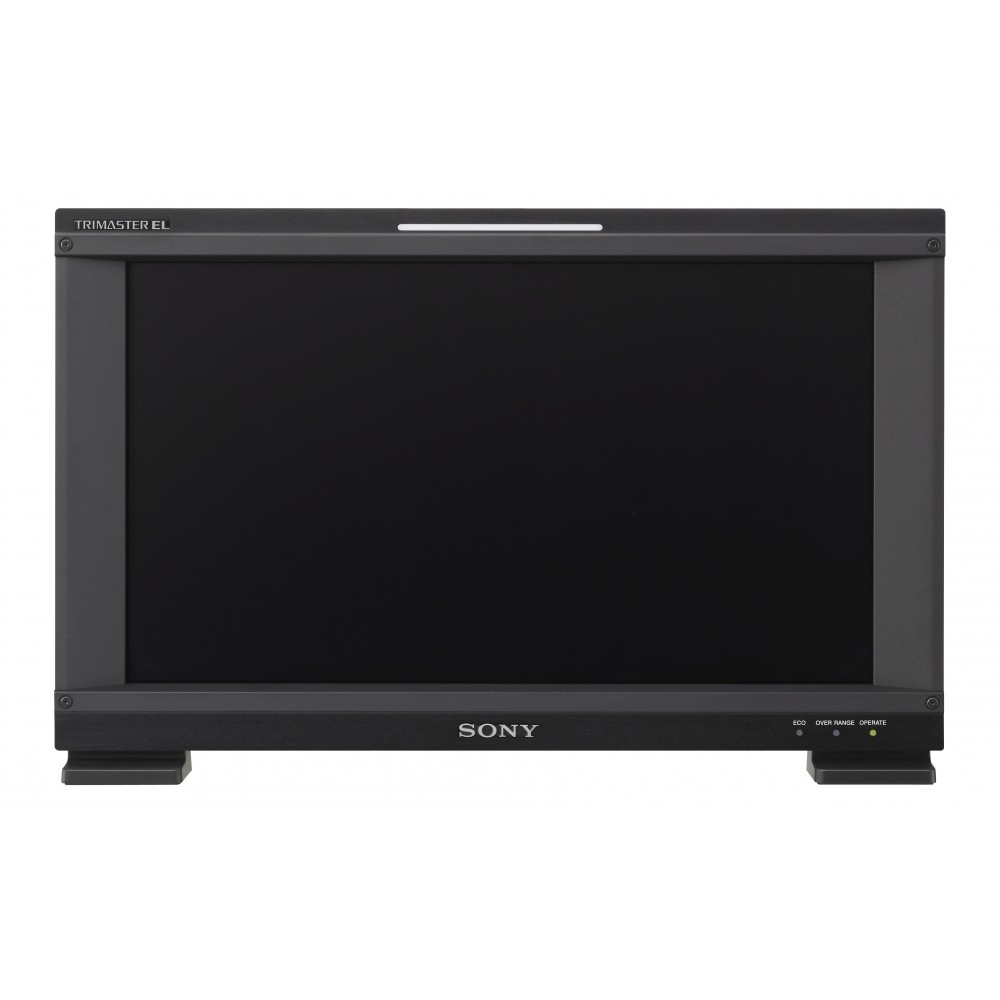

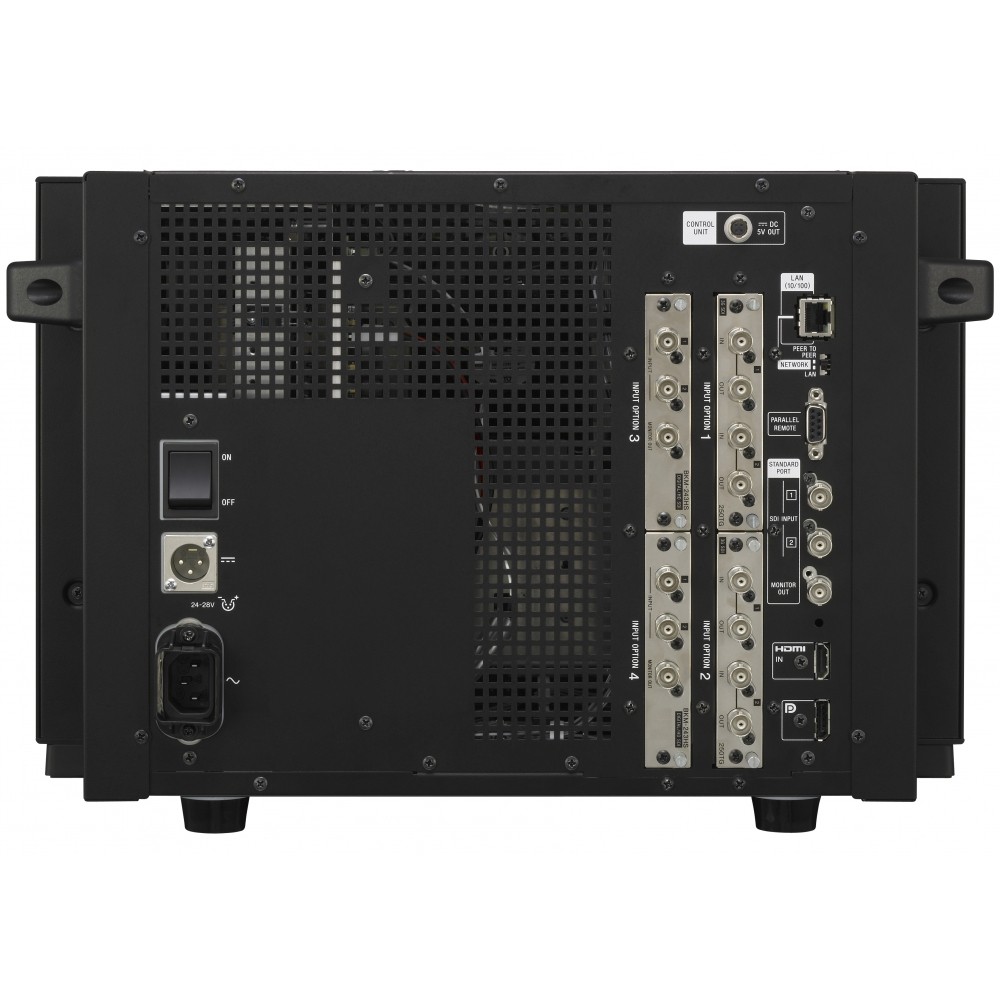

Sony BVM-E170A
16.5-inch TRIMASTER EL™ OLED critical reference monitor with wide viewing angle
For professional applications such as colour grading, high-end editing, broadcasting and scientific research, Sony’s leading edge Organic Light-Emitting Diode (OLED) technology and signals processing technology ensures absolutely outstanding performance with the BVM-E170A. The colour shift depending on the viewing angle has reduced to less than half compared to a conventional OLED panel. It allows several people to evaluate the image with extreme accuracy at the same time, increasing the monitor’s versatility in top end monitoring solutions.
State-of-the-art product
Super Top Emission technology enhances OLED’s intrinsic benefits to deliver outstanding black performance, a quick response time with virtually no motion blur, and a wide colour gamut. A 12-bit output digital signal processing engine provides a nonlinear cubic conversion colour-management system that delivers precise colour reproduction, stunning picture uniformity, smoother-than-ever gamma performance, and picture quality consistency.
Accepts computer signals via HDMI
The BVM-E170A accepts various computer signals input up to 1920 x 1080 through its HDMI connector. It is also equipped with Digital Cinema features.
| VIEWING ANGLES | 89 |
|---|---|
| ASPECT RATIO | 16:09 |
| WEIGHT | 8.5 kg (18 lb 11 oz) |
| DIMENSIONS (WXHXD) | 436.0 x 282.4 (266.4)* x 214.7 mm (17 1/4 x 11 1/4 (10 1/2)* x 8 1/2 inches) * Height without legs |
| PIXEL PITCH | 99.99% |
| BRIGHTNESS | 100 cd/m2 (preset1 to preset5) 48 cd/m2 (preset (D-Cine) (1.0 Vp-p reference signal, 100% white signal input) |
| DISPLAY SIZE (VIEWING AREA) | 420.0 mm (16 5/8 inches), 365.8 x 205.7 mm (14 1/2 x 8 1/8 inches) |
| PANEL DRIVE | RGB 10-bit |
| PANEL | OLED panel |
| POWER CONSUMPTION | Approx. 65 W normally with input from a standard HDMI input. Approx. 115 W at maximum load, with four option slots in use and maximum luminance compensation for any deterioration due to aging. |
| POWER REQUIREMENT | AC 100 V to 240 V, 1.4 A to 0.7 A, 50/60 Hz DC 24 V to 28 V, 4.7 A to 4.0 A |
| PIXEL RESOLUTION | 1920 x 1080 pixels (Full HD) |
| RECORDING FRAME RATE | 48 Hz / 50 Hz / 60 Hz / 72 Hz / 75 Hz(48 Hz, 60 Hz, and 72 Hz are also compatible with 1/1.001 frame rates) |
• Standard Manufacturer's Warranty
• AC power cord x1
• AC plug holder x1
• Bracket x1
• Rack mount bracket x2
• Operation Manual (Japanese, English) each x 1
• CD-ROM x1
• Using the CD-ROM Manual x1
