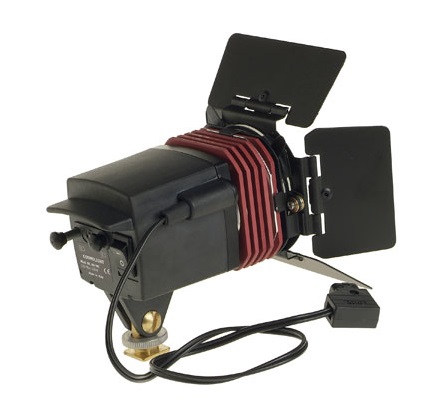

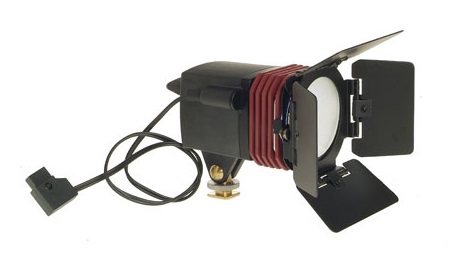

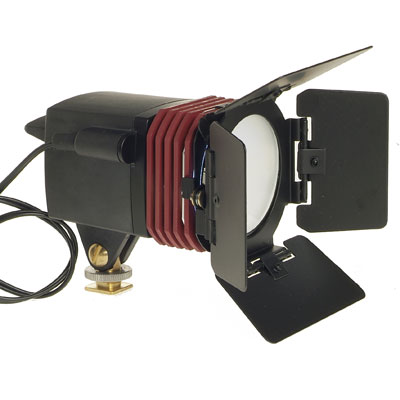

COSMOLIGHT RC 40/MC

PORTABLE TORCH

The Mini Torch belongs to the family of ENG luminaires. In this configuration with Power Tap 2-pin connector it feeds power to the unit using the camera battery

MAIN FEATURES

  • Discreet and compact in size, it is the perfect answer to the latest technology of video cameras present in the market, that require less powerful light
  • Made of thermoplastic and aluminium materials it is extremely light and compact, particularly suitable for reportage and interviews.
  • It accepts 30W lamp.
  • It can be upgraded with the adjustable and extractable ergonomic handgrip for on-stand or by hand use.
  • The two sliding buttons for spot/flood beam variation and the on/off switch positioned at the back of the unit have been designed for quick and smooth one hand operation.
  • The properly designed reflector ensures a high degree of reflectivity and produces a bright, wide, smooth, and even field of illumination.

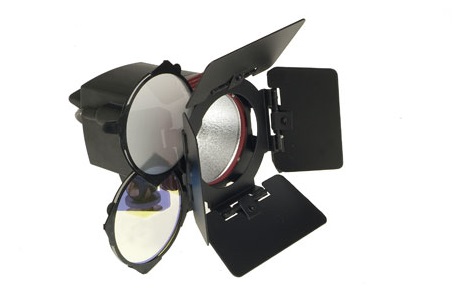

  • The four-leaf barndoor comes complete with diffusion glass and dichroic filter. These can be either not used or used simultaneously or separately, depending on the operator’s needs.

TECHNICAL DATA

  • Aluminium and thermoplastic housing.
  • High temperature painting (only the aluminium part).
  • Sanded and treated aluminium reflector.
  • Spot/flood focusing via two sliding buttons.
  • Shoe mounting.
  • 0,60 mt with Power Tap 2-pin connector.
  • On-board switch.
  • Supply voltage 12V.
  • Lamp base.
  • Correlated color temperature 3200K.
  • IP 20.
  • CE compliant.
  • Weight 0,600 kg.
  • Packing dimensions 27x21xh17 cm.

ACCESSORIES

 RC41M RC 41/M
Four-leaf barndoor with dichroic filter and diffusion glass
RC45 RC 45
Extra slide for screw base gr 15
RC47 RC 47
Ergonomic extractable handgrip
RC48 RC 48
Extension with slide
RC49 RC 49
Kit Ergonomic extractable handgrip + Extension with slide

TECHNICAL DRAWING

ST RC40MMC


PHOTOMETRIC DATA

30W
DISTANCE mt. 1 2 3
Spot 10° Lux 755 197 95
Flood 40° Lux 234 66 33
Beam diam spot (mt) 2,8 4,7
Beam diam flood (mt) 6 10

LAMPS

BASE GX 6,35 - 3200K
MOD. LAMP-RC40M WATT ANSI LIF
RC 40/MC 30W - 12V

ORDERING CODES

RC 40/MC - Mini Torch with Power Tap 2-pin connector
