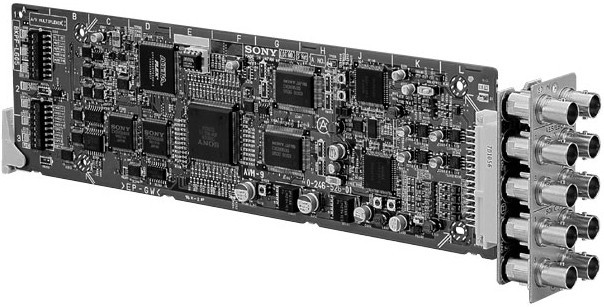

Sony BKPF-L605

The BKPF-L605 is an audio/video multiplexer that embeds two AES/EBU stereo pairs (four individual channels) into a 525/625 component or NTSC composite serial digital video signal, offering lower system cost by reducing the number of modules required for multiple Audio Group multiplexing.

By cascading two BKPF-L605 boards, a further four ES/EBU signals can be embedded to a serial digital video signal, making a total of eight AES/EBU stereo pairs (16 audio channels). The BKPF-L605 distributes the serial digital video with embedded audio signal to four outputs.

The BKPF-L Series function boards install in the PFV-L Series Interface Units in any combination with other BKPF-L Series function boards.

• Up to 16 individual audio channels multiplexed by cascading two boards.
• One serial digital input with an active loop-through output.
• Four serial digital distribution outputs.
• Four AES/EBU stereo pair inputs (eight individual channels)
• Channel swap capabilities.
• Audio Group assignment selectable with on-board switch.
• Function selection for channels 3/4.
• EDH monitoring and insertion.
